Why I Hid My Split Smart Shades Behind a Large Window Valance

I remember sitting in my living room at 10 AM, squinting through a 14-foot panoramic window that I absolutely loved—until the glare hit my laptop. I wanted the 'smart home of the future' experience where I just say a command and the room darkens. But when I started measuring, I realized my dream of a single, massive motorized shade was a logistical nightmare. That is when I discovered the magic of a large window valance to hide my compromises.

• Motorized shades have physical limits; splitting them is often safer for the motor's lifespan.
• Light gaps between split rollers are inevitable but can be managed visually.
• A single, continuous valance creates a high-end, unified look.
• Structural support is everything when spanning wide distances.

The Brutal Reality of Automating Panoramic Glass

Most smart shade manufacturers tap out at 96 or 100 inches. Anything wider and the shipping costs more than the shade because it requires specialized freight delivery. I spent weeks looking for stylish and smart window solutions for large spaces, only to find that even the high-end motors struggle with the weight of a 12-foot fabric roll. When a motor is constantly fighting that much torque, the noise levels spike from a quiet 35dB hum to a strained, mechanical grind.

I originally tried to find a custom vendor who would ship a single 150-inch tube. The quotes were eye-watering—think 'used car' prices. Beyond the cost, I worried about the installation. Lugging a 12-foot metal bar up a ladder without bending it is a recipe for a bad Saturday. I had to pivot to a multi-shade setup.

Why I Was Forced to Buy Split Motorized Shades

Physics is a jerk. If you try to span 144 inches with a single aluminum tube, it will eventually 'smile'—the center sags, the fabric ripples, and the motor eventually burns out. I chose to split the span into three shades that lined up perfectly with my window mullions. It made the installation manageable, but it introduced a new power problem. I spent a lot of time reading a smart Roman shade for large window battery vs hardwired guide before deciding to go hardwired. I didn't want to climb a ladder to charge three different batteries every six months.

The split setup also gives you better control. I can lower the middle shade to block the sun hitting the TV while keeping the side shades open to enjoy the view. It’s more flexible, but once I got the three units mounted, the top of my window looked like a construction site.

That Annoying Light Gap Between the Rollers

Once the shades were up, the 'tech' worked, but the aesthetics were messy. You had three separate rollers with about a 1.5-inch gap between each piece of fabric where the brackets lived. It looked like a row of industrial pipes. To fix the light bleed on the edges, I looked into side rail tracks for blackout shades, but the top was still an eyesore of exposed wires and metal brackets. Every time I looked up, I saw the blinking blue pairing LEDs and the messy power cables I tried to tuck away.

Why a Large Window Valance Was the Only Fix

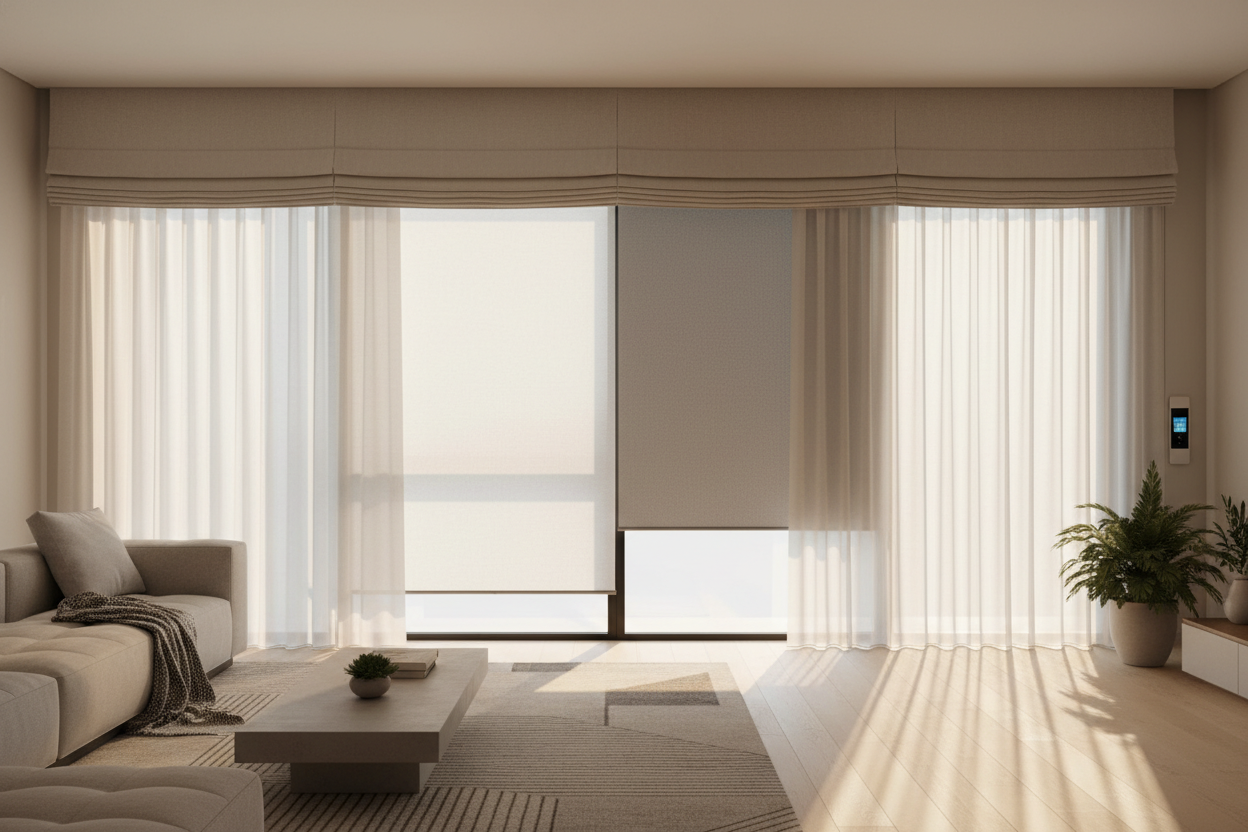

The 'aha' moment came when I realized I didn't need the shades to look perfect—I just needed to hide the top 6 inches of the assembly. A single, wall-to-wall architectural valance acts as a visual bridge. It takes three separate DIY projects and turns them into a singular built-in feature. When the shades are up, they disappear completely behind the valance. When they're down, the valance masks the gaps between the rollers at the top, creating a clean horizontal line across the room.

It also solved my 'smart home' shame. No one sees the external battery packs or the hardwired junction boxes. It just looks like the house was built with these features in mind. I went from cursing at my cable management to actually showing off the setup to guests.

How to Support Window Valances for Large Windows Without Sagging

If you are spanning a massive distance, stay away from thin plastic or flimsy MDF. For valances for large windows, I used a 1x8 pine board wrapped in matching fabric. To keep it from bowing in the middle, I used heavy-duty L-brackets anchored into the studs. The trick is placing those brackets in the 'dead zones' between your shade motors so you don't interfere with the lift mechanism. I learned the hard way that if a bracket is even 1/8th of an inch too close to the fabric roll, it will cause a friction squeal that will drive you crazy every time you use the remote.

Finding the Right Proportions for Oversized Glass

Scale matters. If you put a 4-inch valance on a 10-foot window, it looks like a piece of electrical tape. For window valances for large windows, you want presence. I went with a 12-inch drop. This covers the rollers entirely and adds enough visual weight to balance out the massive amount of glass below it. It makes the ceiling feel higher and the installation look intentional. If you have 10-foot ceilings, don't be afraid to go big. A substantial valance acts as a piece of molding, framing the entire view.

The Illusion of Custom Integration (On a DIY Budget)

My total cost for three off-the-shelf smart shades and some lumber was about $1,200. A professional custom-built 14-foot single shade would have easily cleared $4,000 plus freight. By using a unified top treatment, I hid the 'budget' parts of the build. Now, when I tell my voice assistant to close the blinds, the three motors sync up, the fabric drops in unison, and the whole thing looks like a $10,000 professional smart home integration. It’s the ultimate DIY hack for anyone dealing with oversized architecture.

FAQ

Can I use one motor for three shades?

You can use a coupler to link tubes, but I don't recommend it for DIYers. If the alignment is off by a millimeter, the motor will strain. Three independent motors are much easier to troubleshoot and replace if one eventually dies.

How do I clean a fabric-wrapped valance?

Keep it simple. A vacuum with a brush attachment once a month is usually enough. If you have pets, a lint roller is your best friend for the bottom edge where dust tends to settle.

Do valances interfere with Zigbee or Thread signals?

Not if you use wood or fabric. These materials are signal-transparent. However, if you build a valance out of thick metal or use metallic-backed insulation, you might create a Faraday cage that kills your connectivity.
