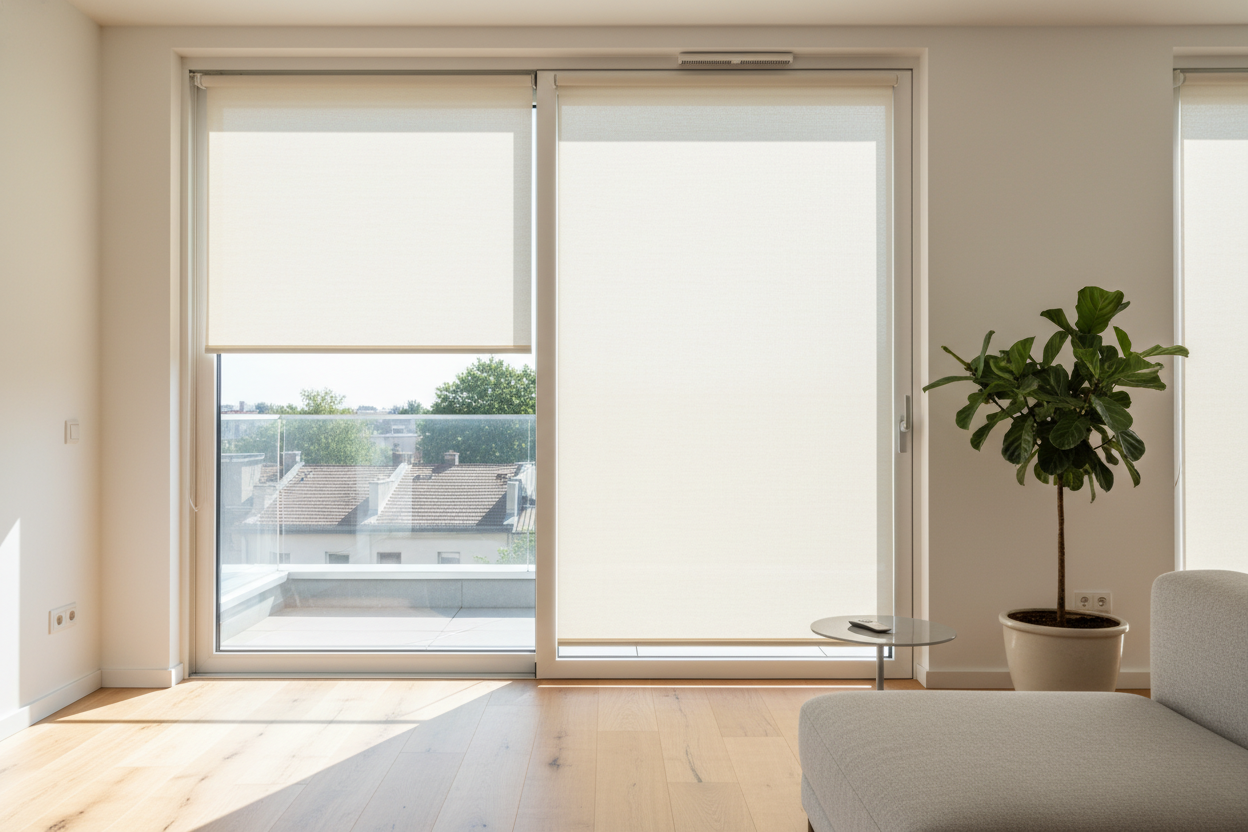

Why I Insisted on Inside Mount Blinds for Sliding Glass Door Frames

My patio door used to be covered by those clacking, dust-collecting PVC vertical slats that every apartment dweller eventually learns to hate. When I finally bought my own place, I swore I would never look at a plastic wand again. I wanted something that vanished when it was open, not a giant valance box hanging six inches off my wall. I spent three hours staring at my patio door with a tape measure and a lukewarm coffee, convinced I could make a flush mount work.

Why I Refused to Hang Bulky Blinds Above My Patio Door

Most contractors and big-box stores will tell you that an inside mount blinds for sliding glass door setup is impossible because the frames are too shallow. They will try to upsell you on an retrofitting modern blinds for sliding glass door project that involves mounting a massive headrail to the drywall above the door. I hated that idea. It covers the expensive wood trim I spent a weekend painting, and it makes the whole room feel smaller by cutting off the vertical lines of the door.

The standard 'outside mount vertical blinds sliding glass door' look is the default because it's easy. It covers up mistakes. But if you want a minimalist, high-end look, you have to fight for those few inches of clearance inside the jamb. I wanted my shades to look like they were part of the architecture, not an afterthought bolted to the wall.

The Brutal Math of Shallow Sliding Door Frames

The 'brutal math' is where most people give up and go back to the clunky verticals. To make this work, you need to learn how to install shades by measuring three specific points: the depth of the top jamb, the clearance of the sliding handle, and the gap between the two glass panes. Most sliding doors only give you about 2.5 inches of mounting depth before you hit the glass.

If your roller assembly is 3 inches wide, you are in trouble. I found that by mounting the brackets at the absolute outer edge of the frame, I could clear the sliding panel's handle by exactly 2 millimeters. You have to measure the 'protrusion' of your handle carefully. If it sticks out more than 1.5 inches from the glass, an inside mount roller will likely catch on it every time you lower the shade.

Choosing Smart Motors That Don't Stick Out

Hardware choice is everything here. Forget those external battery wands that velcro to the glass; they look like a science project gone wrong and ruin the flush aesthetic. I went with ultra-slim Zigbee motors that fit into a 2-inch compact cassette. These motors are surprisingly quiet—under 40dB—which is less than the hum of my dishwasher.

If you are looking at blackout blinds for sliding glass door, be warned: the thicker the fabric, the bigger the roll gets when it is fully retracted. I learned this the hard way. A 100-inch tall blackout shade creates a massive roll that won't fit in a shallow cassette. I opted for a high-performance solar screen material for the main door to keep the roll diameter small, saving the heavy blackout fabrics for the standard windows.

My Step-by-Step Flush Mount Installation Hack

Here is the secret: do not buy one giant blind for a sliding door. A 72-inch or 96-inch single roller is a recipe for fabric sag and motor failure. Instead, I installed two separate rollers side-by-side. I positioned the 'split' exactly where the sliding door meets the stationary panel. This creates a natural visual break that mimics the door frame itself.

I used heavy-duty L-brackets screwed directly into the header beam above the door casing, rather than just the thin aluminum trim. By shifting the brackets forward by just an eighth of an inch, I gained enough clearance for the fabric to drop without rubbing against the sliding door handle. It is a game of millimeters, but when it clicks into place, the result is a perfectly flush, motorized shade that looks like it cost five times what I actually paid.

The Light Gap Reality (And How I Fixed It)

The main drawback of inside mounts is the 'halo' effect—light leaking around the edges because the shade isn't overlapping the wall. Since the shade is tucked inside the frame, you get a sliver of sun at 6 AM that can be annoying if your slider is in a bedroom or a media room. To fix this, I installed side rail tracks for blackout shades.

These are slim U-channels that the fabric slides into. I painted mine to match the door frame perfectly, so they are practically invisible when the shades are up. When the shades are down, they block 99% of that side-light. It turned a 'minimalist' compromise into a functional blackout solution that doesn't sacrifice the clean lines I worked so hard to keep.

Can I use an inside mount if my door has a large handle?

Usually, no. If your handle sticks out more than 2 inches from the glass, an inside mount roller will hit it. You will either need to swap for a low-profile 'flush' handle or move to an outside mount setup.

Will the motor be too loud for a living room?

Most modern Zigbee or Thread motors run around 38-42dB. It is a soft whir, not a grind. If it's waking you up, you probably bought a cheap $40 retrofit motor instead of a dedicated smart shade assembly.

How long does the battery last on a sliding door?

Since patio doors are high-traffic areas, I get about 5-6 months per charge. I highly recommend getting a motor with a USB-C charging port so you can just plug in a portable power bank for an hour twice a year without taking the blinds down.

I'll be honest: I actually bricked my first motor trying to force a firmware update over a weak 2.4GHz signal. The shade stopped halfway up and refused to move for two days. I had to climb a ladder, reset the limits manually, and move my hub closer. It was a frustrating Saturday, but seeing both shades rise in perfect sync the next morning made the headache worth it.
