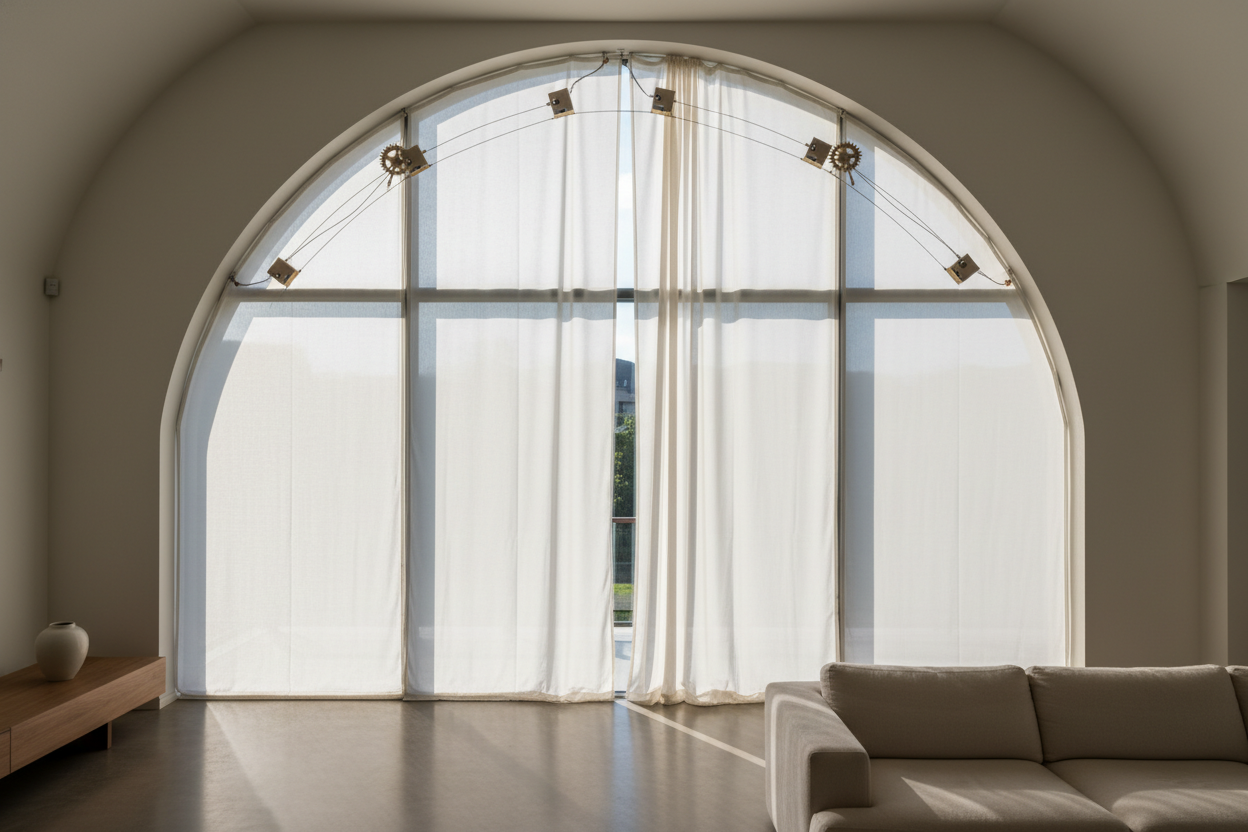

Why My Arch Top Roman Shades Were a Smart Home Nightmare (At First)

I spent three months meticulously stripping layers of lead paint off the original 1920s millwork in my home office, only to realize I had created a massive problem for my smart home addiction. The windows are stunning, but their curved tops are a literal curveball for automation. Every time the sun hits 10 AM, my monitors become mirrors, and I’m left squinting at spreadsheets like I’m looking into the heart of a supernova.

The problem is that the smart home industry is obsessed with rectangles. Most off-the-shelf solutions expect a flat, level headrail. When you’re dealing with arch top roman shades, the physics change. You can’t just slap a motor on a straight bar and hope for the best without obliterating the very architectural curves you paid to preserve. I had to learn the hard way that automating an arch requires more than just a Zigbee hub—it requires a bit of geometry and a lot of patience.

Quick Takeaways

• Standard rectangular headrails will hide your window's arch; custom board mounts are mandatory.
• Templating is the most critical step—if your radius is off by 1/4 inch, the fabric will bind.
• Zigbee motors are preferred for local control, but placement must be at the springline, not the apex.
• Lightweight, structured fabrics prevent the 'bunching' effect that ruins the aesthetic of curved frames.

Why Curved Windows Break Every Smart Home Rule

If you’ve ever browsed a standard collection of Roman shades, you’ll notice a pattern: they all assume your window is a box. When you introduce a curve, the traditional top-down mounting system falls apart. If you mount a straight smart blind inside an arched frame, you’re left with a massive, ugly gap at the top where light leaks in. If you mount it outside the frame, you’ve effectively hidden the most beautiful feature of your room behind a giant fabric rectangle.

The frustration peaked for me when I realized that most 'smart' motors are designed to sit inside a metal headrail. But an arch doesn't have a metal headrail; it has a curved wooden board. This means you can't just 'install' a motor. You have to integrate it. You’re fighting against gravity and the fact that the fabric at the top of the arch stays stationary while the rest of the shade moves. It’s a mechanical puzzle that standard smart home hubs aren't programmed to understand out of the box.

The Paper Template Trick That Saved My Sanity

After my first failed attempt—which involved a lot of 'guesstimating' and a very expensive piece of ruined linen—I went back to basics. I used the paper template trick. You take a large sheet of butcher paper, tape it over the entire window opening, and trace the exact inner edge of the arch with a carpenter’s pencil. This isn't just about the height and width; it’s about the specific radius of that curve.

This template becomes the blueprint for your custom board mount. I used a 3/4-inch plywood base, cut to the exact arc of the window. The goal is to ensure the mount fits snugly inside the frame with just enough clearance—about 1/8 of an inch—so the fabric doesn't scrape against the drywall when the motor engages. If it rubs, the motor’s torque sensors will think it’s hit an obstruction and stop halfway, which is a great way to ruin your 'Alexa, movie mode' routine.

Wait, What About Roman Shades for Arched Doors?

Doors add a whole new layer of complexity. When I started looking into roman shades for arched doors, I realized that unlike a window, a door moves. Every time you slam the door, that motorized shade wants to bounce. If you don't secure the bottom hem with magnetic hold-downs, your expensive smart shades will clatter against the glass like a drum set.

I actually adapted some techniques from a guide on how to make roman shades for french doors smart diy to solve this. The key is using a weighted bottom bar and side channels if the arch is shallow enough. For deeper arches on doors, you have to ensure the motor has a soft-start and soft-stop feature. Without it, the sudden jerk of the motor starting can actually pull the mounting screws right out of the door frame over time. I set my motor speed to 20 RPM—slow, but silent and steady.

Where the Heck Do You Hide the Zigbee Motor?

Here is the technical secret: do not put the motor at the very top (the apex) of the arch. If you do, the lift cords will have to travel at awkward angles, causing the fabric to bunch up in the center. Instead, you mount the motor at the 'springline'—that’s the horizontal point where the straight sides of the window meet the start of the curve. By mounting the motor and the take-up reels here, the bottom 70% of the shade operates like a standard motorized blind, while the top 'fan' of the arch remains fixed.

I used a Zigbee 3.0 motor because I wanted local control through my Home Assistant yellow. No cloud, no latency. I tucked the motor into a custom-routed channel in the mounting board. It’s completely invisible from the front. One thing to watch out for: metal door frames or heavy plaster can kill your signal. I had to add a Zigbee plug nearby to act as a repeater because the motor’s internal antenna was shielded by my window’s lead-lined glass. Once the mesh was stable, the response time was under 200ms.

Don't Guess on Fabric (Trust Me on This)

I originally wanted a heavy velvet for that 'old world' library feel. Huge mistake. Heavy fabrics are the enemy of motorized arches. They are too bulky to fold neatly when the shade is raised, and the extra weight puts a massive strain on the motor’s battery life. I found that my motor went from a 6-month charge to a 2-month charge just by switching from linen to velvet. It also sounded like a coffee grinder trying to lift it.

I highly recommend grabbing a Weffort fabric sample roman shades kit before you commit. You want something with 'memory'—a fabric that naturally wants to fold back into its pleats. A polyester-linen blend is usually the sweet spot. It’s light enough for a small Zigbee motor to handle but structured enough that the arch doesn't look saggy after a few weeks of use. Test the drape by folding the sample over a curved edge; if it holds the shape without looking like a crumpled napkin, you’ve found your winner.

The Final Verdict: Was the Custom Arch Worth It?

Automating these shades was a massive pain in the neck. I had to recalibrate the upper and lower limits four times because the fabric stretched slightly after the first week. But the first time I sat at my desk and said, 'Hey Google, it’s too bright,' and watched those shades glide up to perfectly frame the architectural curve of the window? It was worth every swear word uttered during the installation. You get the convenience of a modern smart home without turning your historic house into a sterile, rectangular box. Just remember: measure three times, cut once, and never skip the paper template.

FAQ

Can I use a battery-powered motor for arched shades?

Yes, but keep it accessible. Since the motor is tucked into the arch, you don't want to be taking the whole thing down to charge it. Use a motor with a magnetic charging port or a solar panel discreetly tucked behind the glass.

Will a standard smart hub control these?

If your motor is Zigbee or Matter-enabled, yes. Most will show up as a 'dimmable light' or a 'window covering' in Apple Home or Alexa. You’ll just need to manually set the travel limits so the motor knows exactly where the arch begins.

What if my arch isn't a perfect semi-circle?

That’s exactly why the paper template is non-negotiable. Many older homes have 'eyebrow' arches or slightly slumped curves. A custom board mount cut to your specific template will handle these irregularities where a 'standard' arch kit would fail.
