Why My Side-by-Side Faux Wood Blinds 27 x 64 Looked Haunted

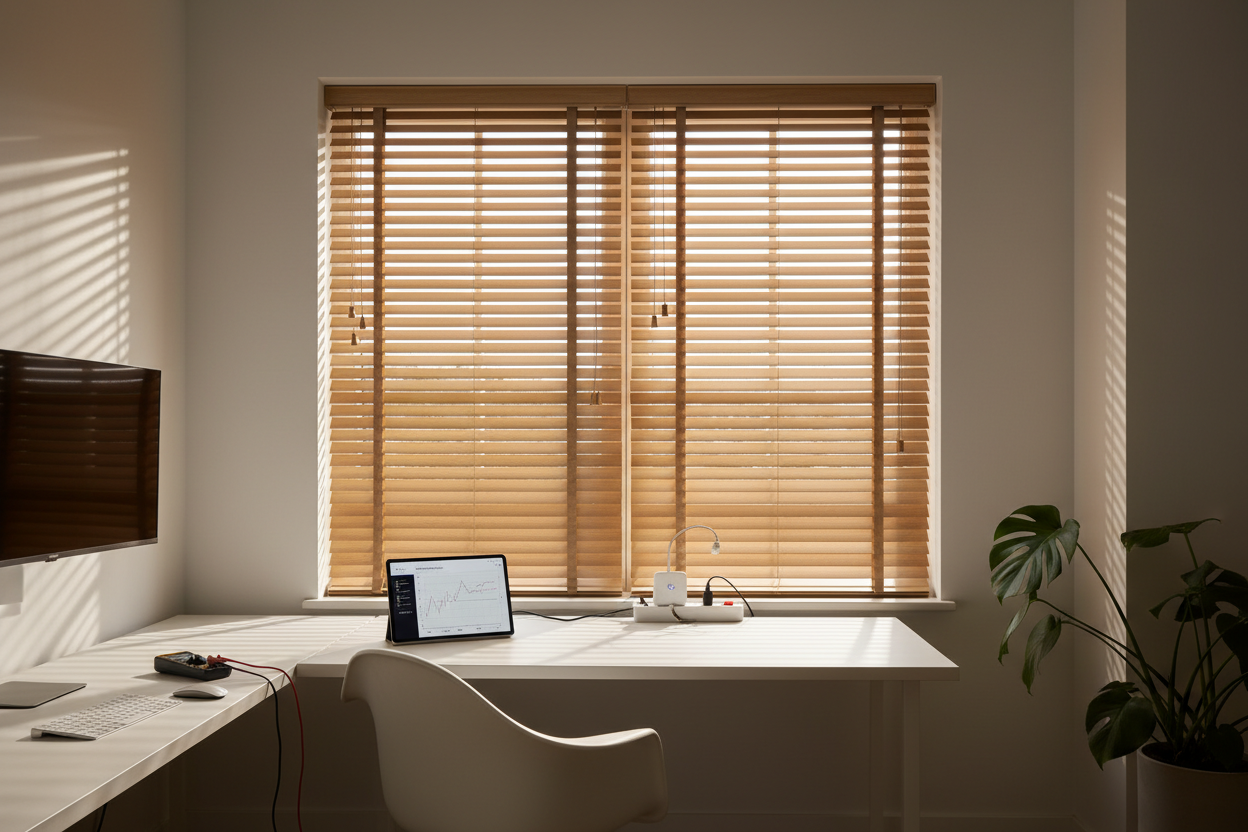

I was sitting in my home office, squinting at a Zoom call because the afternoon sun was hitting my monitor at just the right angle to turn my retinas into toast. I reached for the remote to tilt my three side-by-side faux wood blinds 27 x 64, expecting a smooth, synchronized motion. Instead, I got a horror movie. One blind tilted, then the second paused for two seconds before jerking into place, and the third just sat there, dead-eyed, until I mashed the button again.

Quick Takeaways

• Zigbee command lag is the primary cause of the 'haunted wave' effect in bay windows.
• 27-inch headrails are incredibly cramped, making internal battery placement a puzzle.
• Group commands at the hub level (Zigbee Groups) rather than the app level to fix sync issues.
• PVC slats on a 64-inch drop are heavy; expect shorter battery life and slower motor speeds.

The Bay Window Trap: Why Three Blinds Are Worse Than One

Putting three smart motors within eighteen inches of each other is asking for wireless interference. In my bay window setup, I thought I was being clever by automating each panel. I quickly realized that when you trigger three separate Zigbee devices simultaneously, you create a localized traffic jam. The signals bounce around the narrow frame, and the motors end up processing commands at slightly different millisecond intervals.

This creates a staggered movement that looks messy. It’s not just an aesthetic gripe; it’s a sign that your mesh network is struggling to prioritize packets. I spent three nights re-pairing these units because I thought the middle motor was defective. It wasn't. It was just being bullied by the RF noise from its neighbors.

Squeezing Motors Into Faux Wood Blinds 27 x 64

A 27-inch headrail is basically a studio apartment for hardware. You have the tilt rod, the cord drums, and the mounting brackets all fighting for a few inches of steel. When I tried to fit a standard tilt motor into these narrow frames, I realized I had about half an inch of clearance. I actually had to move the cord ladder drum slightly to the left just to clear the motor housing.

If you have the choice, retrofitting slightly larger 29x64 blinds is a much better experience. Those extra two inches feel like a palace when you're trying to tuck away a Zigbee antenna and a battery lead. In the 27-inch model, if you don't cable-manage like a pro, the tilt rod will eventually snag a wire and rip your hard work to shreds.

The Haunted Wave Effect: Fixing the Sync Delay

The fix for the 'creepy wave' isn't better motors; it's better logic. Most people create a 'Room' in their app and hit 'Close.' This sends individual commands to every device. Instead, you need to use Zigbee Grouping (specifically Zigbee Group 0). This allows the hub to send one single broadcast packet that every motor hears and acts on at the exact same moment.

Once I implemented grouping, the lag vanished. The blinds now move in a perfect, satisfying line. If I had been automating wider 36-inch options, I probably wouldn't have noticed the issue because a single large blind doesn't have a neighbor to compete with. But with three narrow panels, synchronization is the difference between a high-end smart home and a poltergeist prank.

When PVC is Too Heavy (Even for Narrow Blinds)

We need to talk about the weight of PVC. Faux wood is essentially heavy plastic, and a 64-inch drop is a lot of material for a tiny DC motor to fight against. My motors were groaning at about 45dB—noticeably louder than the 35dB rating on the box—simply because they were under high torque. After six months, the battery on the middle blind was already at 12% while the others were at 40%.

If your motors sound like they are lifting a bag of bricks, you might want to upgrade to woven wood shades. They are significantly lighter than faux wood, which extends your battery life and keeps the motor noise to a whisper. I eventually swapped the heavy slats for a lighter composite in my office just to stop the 'grinding' sound every morning at 8 AM.

My Final Automation Routine for Perfect Focus

Now that the 'haunted' lag is gone, I use a simple logic flow in Home Assistant. At 10:00 AM, the blinds tilt to 30% to block the direct glare. At 2:00 PM, they move to 60%. Because I’m using Zigbee groups, the transition is silent and simultaneous. No more jerking, no more delays, and no more squinting at my screen during meetings.

FAQ

Why do my three blinds always finish at different heights?

This is usually due to physical friction or slight variations in the tilt rod tension. It is rarely a software issue. Check if the strings are rubbing against the headrail on the slower unit.

Can I use a single battery pack for all three 27-inch blinds?

You can, but I don't recommend it. Parallel wiring three motors to one battery often leads to voltage drops that cause the motors to reset or lose their pairing during high-torque movements.

Is Zigbee better than Bluetooth for side-by-side blinds?

100%. Bluetooth has even worse latency issues when multiple devices are triggered. Zigbee with proper grouping is the only way to get that 'pro' synchronized look.
