Why My Venetian Blinds Large Window Setup Sagged (And How I Fixed It)

I remember the morning I finally finished installing a massive, 110-inch single-piece blind across my living room. It looked like a design magazine for exactly forty-eight hours. By day three, the center started to dip. By day ten, the lift cords were fraying because they were fighting a losing battle against physics. If you are shopping for a venetian blinds large window solution, let my failure be your manual for doing it right the first time.

• Single spans over 84 inches will inevitably sag and snap their cords.
• Split headrails (2-on-1 or 3-on-1) provide the look of one blind with the structural integrity of several.
• Automating the tilt is 10x more reliable than trying to motorize the lift on oversized treatments.
• Real wood is significantly lighter than faux wood and is the only choice for massive windows.

The Gravity Problem: Why 100-Inch Slats Always Fail

Physics is a jerk. When you try to span a venetian blinds large window with a single, continuous run of slats, you are asking for trouble. A standard 2-inch slat made of faux wood or even aluminum has a flex point. Over a 100-inch span, the weight of those slats pulls the center downward, no matter how many support brackets you screw into your header.

This isn't just an aesthetic issue; it's a mechanical death sentence. As the slats bow, the lift cords rub against the sharp edges of the route holes at an angle they weren't designed for. Within months, you'll see the cords fraying into a fuzzy mess. Eventually, they snap, and you're left with a crooked, useless pile of slats that costs hundreds of dollars to restring.

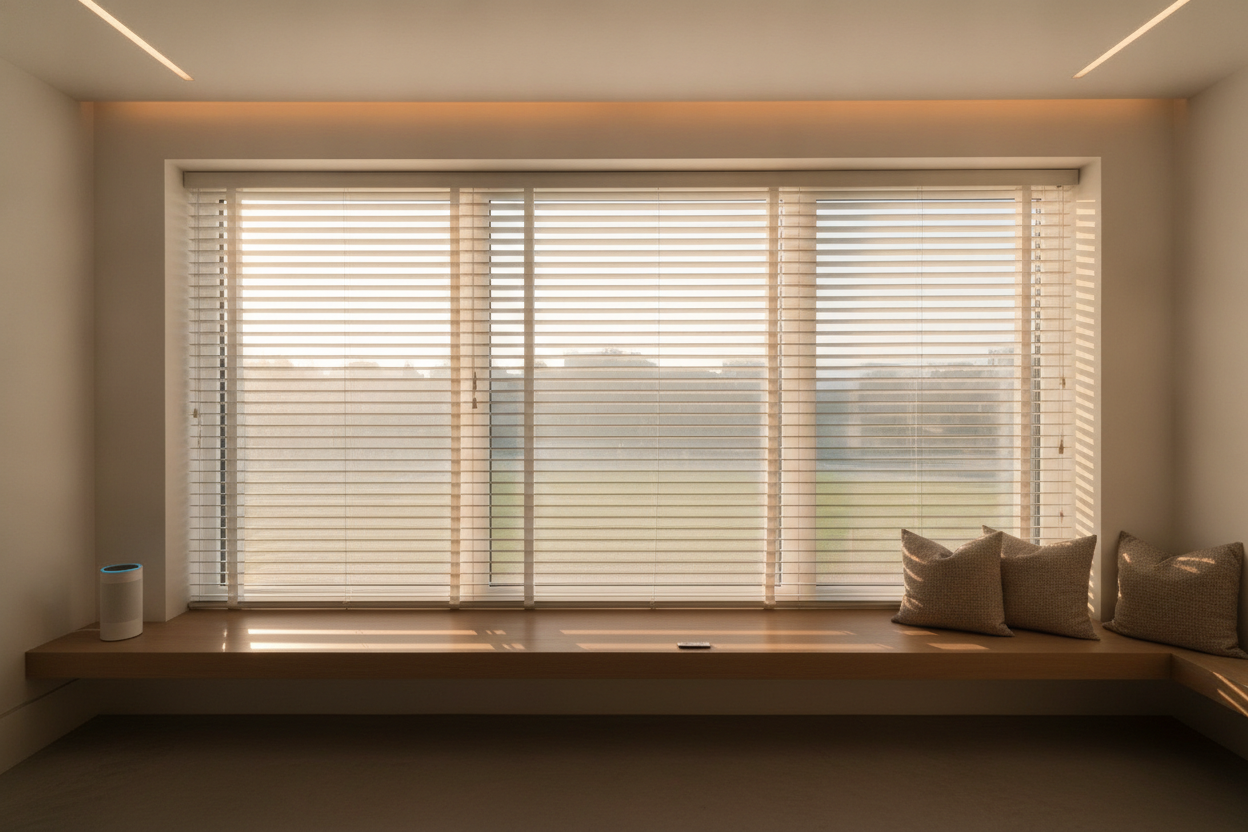

Split Headrails: The Secret to Venetian Blinds Large Window Fits

The fix is a 'two-on-one' or 'three-on-one' headrail. This setup uses one long, continuous valance and headrail casing, but inside, the blinds are split into independent segments. You might have three separate sets of slats hanging from one unified top bar. It keeps the architectural lines clean without the middle-age sag.

From a distance, it looks like one massive installation. Up close, there are tiny half-inch gaps between the segments that align perfectly with your window mullions. This distributes the weight across multiple sets of hardware. Instead of one motor or cord loop fighting 40 pounds of material, you have three units handling a manageable 13 pounds each.

Why I Automated the Tilt (But Left the Lift Manual)

Here is a secret from someone who has burned out three high-torque motors: don't bother motorizing the lift on a giant window. It is slow, loud, and puts immense strain on the batteries. I realized Why I Ditched Roller Shades for Smart Venetian Window Blinds was primarily for the light control, not the ability to see the bare glass.

I leave my blinds down 95% of the time. By automating just the tilt, I can flick a switch to go from 'blinding afternoon glare' to 'perfectly diffused light' in three seconds. The motors for tilting are tiny, draw very little power, and last for over a year on a single charge because they aren't fighting gravity—they are just rotating a rod.

Motorizing the Setup Without Burning Out Your Tech

When you go with a split headrail, you'll need a tilt motor for each segment. This might sound expensive, but I found that My $50 Smart Window Blinds Venetian Retrofit Beat Custom Quotes by using individual retrofit kits. The key is the 'Group' function in your smart home app.

I use Zigbee motors paired to a central hub. In the app, I created a group called 'Living Room Main.' When I tell my voice assistant to close the blinds, all three segments tilt in perfect unison. It is a satisfying, high-end effect that makes the split design completely unnoticeable. This is exactly Blog Why Choose Smart Blinds logic in action: solving the problem of a hard-to-reach oversized window without over-engineering the lift mechanism.

Wood vs. Faux Wood: Why Material Weight Matters Here

If you are covering a venetian blinds large window, stop looking at faux wood. I know it’s cheaper and handles moisture better, but it is heavy. Faux wood is essentially a composite of plastic and wood flour. Real basswood or paulownia is significantly lighter.

On a large window, every ounce counts. Using real wood reduces the load on your mounting brackets and, more importantly, reduces the torque required for your smart motors to tilt the slats. If you want your automation to last more than a season, go with the lighter material. Your motor's gears—and your drywall anchors—will thank you.

Can I motorize a blind that is already installed?

Yes, as long as it has a standard headrail. You can swap the manual tilt mechanism for a battery-powered motor in about 15 minutes. Just check your headrail dimensions first.

What is the maximum width for a single venetian blind?

Most manufacturers stop at 96 inches, but honestly, anything over 72 inches should be split. The weight becomes a major liability for the lift mechanism beyond that point.

Does the gap between split blinds let in a lot of light?

The gap is usually about 1/4 to 1/2 inch. If you align the split with the vertical frames (mullions) of your window, you won't notice any extra light leakage at all.
