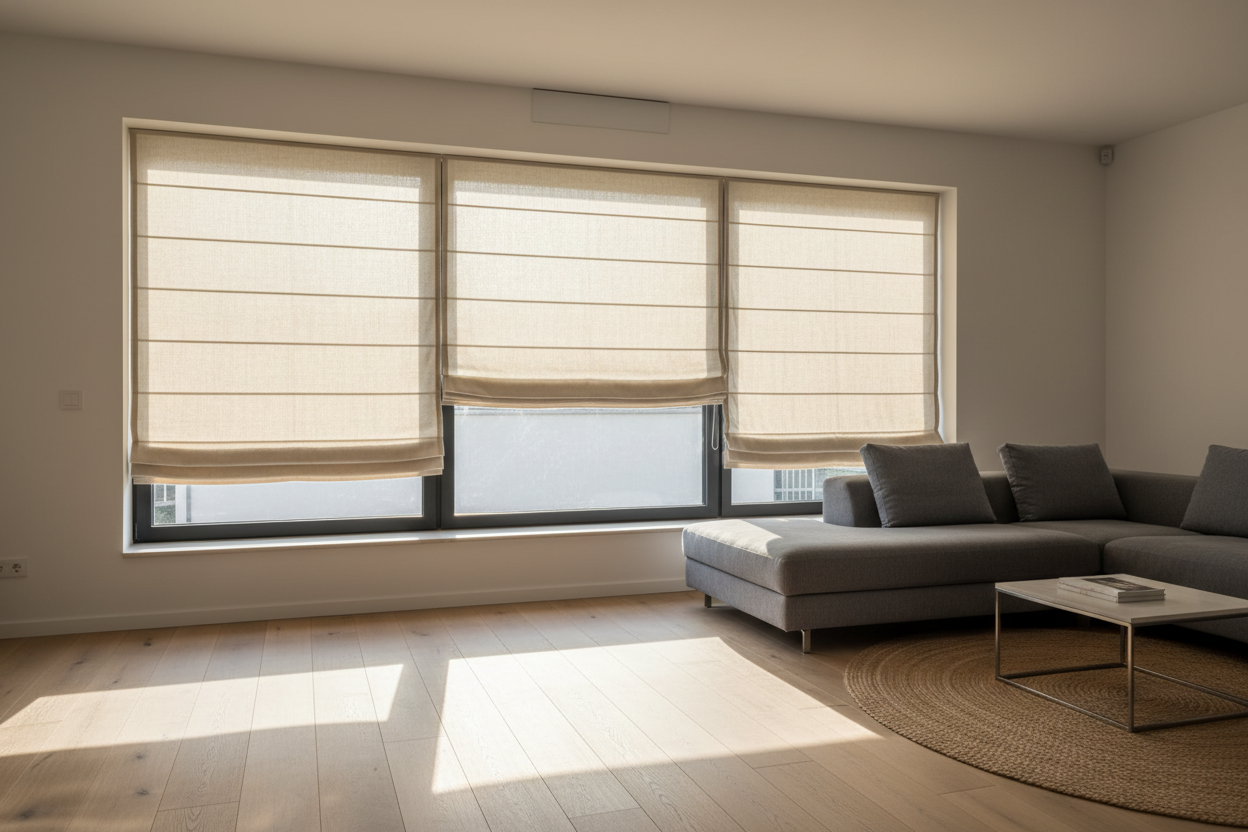

Why Smart Roman Window Blinds Look Terrible on Shallow Sills

I spent three hours wrestling with a drill and a level, only to step back and realize my expensive new motorized shades looked like they were trying to escape the window. It’s a classic DIY heartbreak. You want that clean, high-end look where the fabric sits flush with the trim, but then reality—and a 2-inch motor tube—hits you.

Installing roman window blinds with smart motors isn't as simple as swapping out a manual cord. If you live in a house built with shallow 2-inch sills, you’re in for a fight against physics. Here is how I learned to stop guessing and start measuring for the motor, not just the window.

Quick Takeaways

• Most smart motors require at least 2.5 to 3 inches of depth for a flush inside mount.
• External battery wands are depth-killers; always opt for integrated rechargeable motors.
• Fabric 'stack' (the height of the folded material) can block your window handles if you aren't careful.
• If your sill is under 2 inches, an outside mount often looks more custom than a protruding inside mount.

The Inside Mount Illusion (And Why It Tricks Us)

We see those glossy architectural photos where the shade is tucked perfectly inside the frame, and we think, 'I can do that.' But manual shades use tiny 1-inch headrails. Smart shades need a hollow tube to house the motor, the antenna, and the battery cells. That tube is rarely smaller than 1.5 inches, and once you wrap the fabric around it, you’re looking at a 2.25-inch minimum profile.

I made the mistake of following an honest smart window upgrade guide that didn't emphasize sill depth enough. I assumed my standard builder-grade windows could handle it. They couldn't. The result was a headrail that poked out past the drywall, casting an ugly shadow and ruining the lines of the room. If your roman window depth is shallow, you have to account for every millimeter of that motor housing.

Measuring Your Roman Window Space The Right Way

Grab a metal tape measure—don't use a soft sewing tape. You need to measure the distance from the glass to the edge of the trim. But here is the kicker: you have to measure from the furthest protruding object. If you have a window crank or a handle that sticks out an inch, your 'available depth' just shrunk by that much.

Open your window and look at the hardware. If that handle is in the way, your shade will hit it every time it lowers, eventually burning out the motor. Also, consider the fabric stack. When a Roman shade is fully raised, that thick fabric gathers at the top. If you have a shallow sill, that stack might protrude even if the headrail fits. Measure three times, cry once.

Battery Wands vs. Integrated Motors: The Depth Cost

If you are shopping for Roman Shades, look closely at the power source. Some older or cheaper systems use an external battery wand—a plastic tube filled with AA batteries that clips behind the headrail. In a shallow window, this is a death sentence for your aesthetic. It adds another 3/4 inch of depth requirement immediately.

I only buy shades with integrated lithium-ion motors now. They are slimmer, quieter (usually under 40dB), and don't require me to hide a bulky plastic wand. They charge via a long micro-USB or USB-C cable once or twice a year. In a tight space, that saved half-inch is the difference between a professional install and a DIY disaster. Integrated motors keep the center of gravity closer to the brackets, which also prevents the rail from sagging over time.

When to Give Up and Outside-Mount Your Shades

Sometimes, the math just doesn't work. If you have 1.5 inches of depth and a motor that needs 2.5, stop trying to force it. An inside mount that sticks out looks like an accident. An outside mount, where the shade is installed on the wall above the window trim, looks like an intentional design choice. It also makes the window look larger and blocks more light because there are no 'light gaps' on the sides.

For my master bedroom, I gave up on the inside mount and went with the Silva Series Motorized Blackout Roman Shades mounted four inches above the trim. It looks regal. By mounting higher, the fabric stack stays completely clear of the glass when open, letting in every bit of natural light. It turned a technical limitation into a high-end feature.

Testing Fabric Bulk Before You Buy

Fabric choice isn't just about color; it’s about volume. A heavy velvet Roman shade is going to have a much deeper stack and a thicker roll than a lightweight linen. If you're working with tight tolerances, you need to know how that fabric behaves when it's folded up. A thick blackout liner adds even more bulk to the equation.

Don't trust the thumbnails on your screen. I always order Weffort Fabric Sample Roman Shades swatches to feel the weight. I’ll actually fold the swatch into thirds to see how thick the 'stack' will be. If the folded swatch is thicker than my thumb, I know it’s going to be a tight squeeze in a shallow sill. It's the cheapest insurance you can buy for a $500 window treatment.

My Personal Motorized Fail

I once installed a Zigbee-based Roman shade in my kitchen. It looked great, but I didn't account for the heat from the stove. The fabric expanded slightly, causing it to rub against the shallow frame. One morning, I tried to update the firmware via my hub, and the motor got stuck halfway up because of the friction. It took me two hours of recalibrating and 'shaving' the mounting brackets to get it to move freely again. Lesson learned: give your motors room to breathe.

FAQ

What is the minimum depth for a motorized Roman shade?

Usually, you need at least 2 inches for a partial mount and 3 inches for a fully flush mount. Check the specific headrail depth in the product specs before buying.

Can I use a battery wand with shallow windows?

I wouldn't recommend it. You'll likely have to mount the wand on the wall outside the window or hide it behind the fabric, which looks messy and makes it hard to change batteries.

How do I hide the gap if my shade sticks out?

You can't really hide it, but you can use a 'valance' or a fabric return. A return is a small piece of fabric that covers the side of the headrail, making it look like a finished box rather than an exposed metal bracket.
