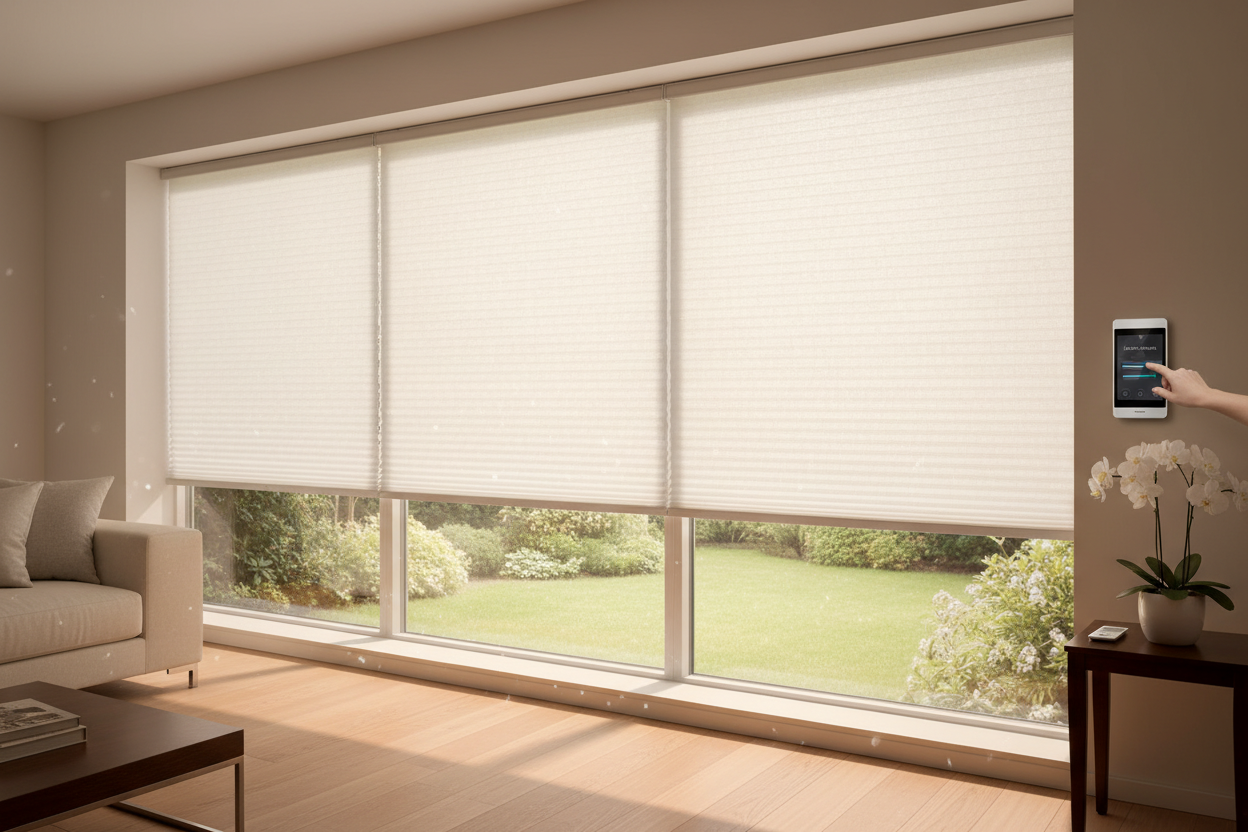

Wide Windows? Smart Control for 3-on-1 Cellular Shades

Imagine standing in front of your massive sliding glass door or that expansive living room picture window. Instead of wrestling with three separate lift cords—trying to get them all perfectly aligned while dodging the furniture—you simply say, "Movie Mode." Instantly, the massive expanse of glass is covered. This isn't sci-fi; it's the practical application of motorized 3 on-1 headrail cellular shades.

Covering wide windows is often a logistical nightmare. A single shade is often too heavy for a standard motor, causing strain and draining batteries rapidly. The 3-on-1 configuration solves this by mounting three independent shades on a single, unified headrail. When you add smart connectivity to this setup, you get the aesthetic of a clean, single fixture with the granular control of three individual smart devices.

Quick Specs Overview

• Max Width: Typically up to 144 inches (varies by brand).
• Motor Configuration: Usually requires 2 or 3 separate motors depending on lift weight.
• Power Source: Li-ion rechargeable battery wand (most common) or 12V DC hardwired.
• Connectivity: Zigbee, Z-Wave, or RF (Requires Bridge for Wi-Fi).
• Noise Level: ~40dB - 50dB per motor.

Why Split the Shades? (The Physics)

If you have a window wider than 96 inches, a single continuous cellular shade is risky. The fabric sags in the middle, and the torque required to lift that much weight burns through motor life. By utilizing three blinds on one headrail, you distribute the load.

From a smart home perspective, this configuration allows for "Sub-Group" control. You can program a scene where the center shade stays open for the view, but the two side shades lower to block glare on your TV. This level of customization isn't possible with a single massive roller.

Motorization: Battery vs. Hardwired

When retrofitting these large units, power is your first bottleneck. Since you are essentially powering three separate units, you need to consider the amp draw.

The Rechargeable Route

Most DIY-friendly options, like the Levolor 3 on 1 headrail systems found at big-box stores, lean toward battery wands. Here is the reality: if you link all three shades to move simultaneously every day, you will be charging them frequently. Look for motors with high-capacity external battery packs rather than internal tubes, so you don't have to take the shade down to charge it.

Hardwired (12V DC)

If you are in the renovation phase, run low-voltage wire to the top of the window frame. Hardwiring eliminates the "battery anxiety" of having the left shade die while the right one is still working. It also provides consistent voltage, meaning all three motors will spin at the exact same RPM, keeping the bottom bars perfectly aligned during movement.

Smart Integrations and Latency

Getting multiple blinds on one window to act as a single unit requires a robust ecosystem. If you are using Wi-Fi motors, you might experience "popcorn effect"—where one shade starts a second later than the others due to cloud latency.

For the tightest synchronization, I recommend local control protocols like Zigbee or Lutron's Clear Connect. When you issue a voice command via Alexa or Google Assistant, the hub sends a simultaneous local signal, ensuring the three shades move in harmony.

Living with 3 on-1 Headrail Cellular Shades: Day-to-Day Reality

I installed a motorized 3-on-1 setup in my own dining room about six months ago, and there is a specific sensory detail most spec sheets don't mention: the "Light Gap Strike."

Because these are three independent fabric panels, there is a tiny vertical gap (usually about 1/4 to 1/2 inch) between the shades. At 7:00 AM, when the sun hits the window directly, two laser-beams of sunlight cut through those gaps. It’s not a dealbreaker, but if you are using this for a blackout setup in a nursery or media room, you need to know that "blackout" applies to the fabric, not the gaps. Also, the sound of three motors whirring at once creates a distinct harmonic hum—it's louder than a single shade, something to keep in mind if you have light sleepers nearby.

Conclusion

Upgrading to smart 3-on-1 shades transforms a clunky, cord-heavy window into a sleek wall of motorized fabric. While the setup requires careful consideration regarding power and motor synchronization, the ability to control massive spans of glass with a voice command is a massive quality-of-life upgrade.

Frequently Asked Questions

Can I control all three shades simultaneously?

Yes. In your smart home app (like SmartThings, Apple Home, or the manufacturer's app), you can group the three motors into a single room or zone. A single command will trigger all of them.

What happens during a power outage?

If you use battery-powered motors, they will continue to work via the remote or local buttons. If they are hardwired or rely on a Wi-Fi hub that is down, you generally cannot move them manually without risking damage to the internal gears.

Do I need a hub for these?

Usually, yes. While some motors offer direct Bluetooth or Wi-Fi, a dedicated bridge (like the Bond Bridge or a brand-specific gateway) offers better range and battery life for the shades.
