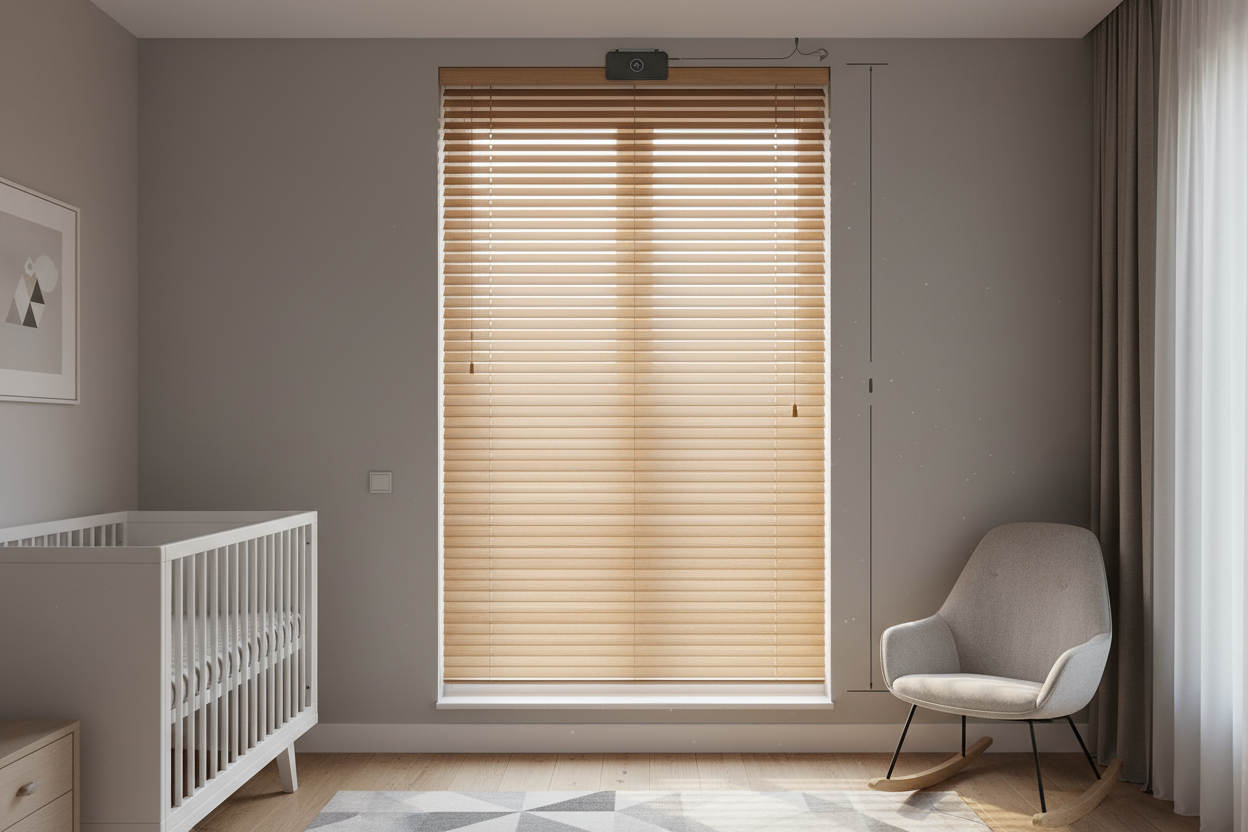

Will Smart Motors Fit Inside Narrow 27 x 72 Faux Wood Blinds?

I live in a historic home with west-facing bay windows that turn my living room into a literal kiln by 3:00 PM every afternoon. For years, I did the 'bay window dance'—manually wrestling with three sets of tangled cords while trying not to knock over a floor lamp. I finally reached my breaking point and decided to automate my 27 x 72 faux wood blinds, but I quickly realized that tall, narrow windows are a unique kind of hell for smart home gear.

Quick Takeaways

• Width is tight: 27 inches is the 'Goldilocks' zone—just wide enough for a motor and battery, but wire management is a nightmare.
• Weight matters: A 72-inch PVC drop is heavy. You need a high-torque motor, or you'll burn out the gears in six months.
• Heat Expansion: PVC expands in direct sun. If your fit is too snug, the blinds will jam against the window frame.
• The 95% Rule: Never calibrate your tilt to 100% closure; leave a little slack to account for material swelling.

The Bay Window Trap: Why Narrow Headrails Are a Headache

When you're dealing with a 27-inch headrail, you think you have plenty of room. You don't. Once you factor in the manual tilt mechanism (which you usually have to remove), the support brackets, and the tilt rod itself, that internal real estate vanishes. I’ve previously documented Why Long, Skinny Faux Wood Blinds 23 x 72 Are a Nightmare to Automate, and while 27 inches feels luxurious by comparison, the margin for error is still razor-thin.

The biggest struggle is the battery wand. Most retrofit kits assume you have a standard 36-inch window where you can just tuck the batteries to the side. In a narrow 27-inch frame, the motor takes up the center-left, and the battery wand usually has to be mounted behind the headrail or tucked dangerously close to the moving tilt rod. I spent forty-five minutes just zip-tying cables because if a single wire touches that rotating rod, the motor will chew through the insulation like a hungry squirrel.

If you’re DIY-ing this, buy short extension cables for your power supply. Trying to cram twelve inches of excess slack into a 27-inch metal box is a recipe for a blown fuse or a jammed tilt mechanism. I learned that the hard way after my first attempt ended with a smell of ozone and a very expensive paperweight.

Afternoon Heat vs. Heavy PVC: The Friction Equation

Here is something the manufacturers won't tell you: physics hates your 72-inch PVC slats. Faux wood is essentially heavy plastic. When you have a 72-inch vertical drop, that’s a lot of mass for a tiny DC motor to rotate. On a cold morning, the motor hums along at a respectable 38dB. But by 4:00 PM, when the sun has been baking those slats for hours, everything changes.

PVC has a relatively high coefficient of thermal expansion. In a deep window jamb, those 27-inch wide slats will actually grow by a millimeter or two. It sounds like nothing, but when you have 72 inches of slats all expanding simultaneously, they start to rub against the window casing. This creates friction that the motor has to overcome. I’ve stood in my living room and watched my blinds struggle to close, the motor straining with a high-pitched whine because the slats were physically wedged against the wood trim.

This friction doesn't just drain your battery faster; it puts immense stress on the plastic gears inside the motor housing. If your window frame is tight, you might need to take a sander to the edges of the slats or, better yet, ensure your blinds are ordered with a 1/2-inch deduction rather than the standard 1/4-inch. In the world of automation, a 'perfect fit' is actually your worst enemy.

Setting Smart Limits So Your Gears Don't Strip

Calibration is the most boring part of the setup, but it’s the most critical. When you use an app to set your 'Open' and 'Closed' limits, the temptation is to make them seal perfectly shut. Don't do it. I learned this after seeing Why My Side-by-Side Faux Wood Blinds 27 x 64 Looked Haunted—if one motor hits a physical resistance point before the software limit, it will just keep pushing until something snaps.

I set my 'Closed' limit to about 95%. Visually, you can't tell the difference from the street, but it leaves a tiny bit of play in the tilt rod. This 'slack' is your insurance policy against heat expansion. If the slats have swollen and the motor tries to force them into a 100% vertical lock, the torque will eventually strip the internal drive gear. Most of these motors are rated for about 1.2Nm of torque; that is plenty for movement, but not enough to fight physics.

Also, if you are automating multiple windows in a bay, sync them to a group but stagger their start times by one second. It prevents a massive Zigbee mesh congestion spike and, more importantly, it lets you hear if one specific motor is struggling. If they all start at once, the collective drone masks the sound of a motor that's about to die.

When to Give Up on Plastic and Go Natural

Sometimes, you have to admit that 72 inches of faux wood is just too much 'junk in the trunk' for a small motor. If your blinds are constantly losing their calibration or the batteries are dying every three weeks, the material is likely the culprit. Faux wood is nearly double the weight of real wood or composite materials.

If you’re starting from scratch or looking to replace a failed DIY project, I highly recommend looking at Woven Wood Shades. They are significantly lighter, which means your motor doesn't have to work nearly as hard. Because they are porous, they don't trap heat and expand the same way PVC does. If you want something that works perfectly out of the box without the 'will it fit' anxiety, the Crocheting Series Motorized Woven Wood Shades are a fantastic alternative for tall windows. They handle the height with ease because the motor is lifting a lightweight fabric or bamboo rather than twisting 40 pounds of plastic slats.

My Current Solar-Tracking Routine (That Survives the Summer)

My current setup uses a Zigbee hub and a simple Alexa routine that tracks the sun's position rather than a fixed time. At 1:00 PM, the blinds tilt to 30%. At 3:00 PM, when the sun is directly hitting the bay, they move to 85%. This gradual movement prevents the motor from having to perform a 'cold start' lift under maximum heat stress.

I also use a small solar panel trick. Since these are 72-inch tall windows, there is plenty of glass. I mounted a small solar trickle charger at the very top of the pane. Even though the blinds are heavy, I haven't had to manually charge the 27-inch headrail units in over fourteen months. It’s a set-it-and-forget-it system that finally ended my afternoon battles with the sun.

FAQ

Can I use a standard tilt motor for 72-inch long blinds?

You can, but check the weight rating. Most 'mini' motors are designed for 48-inch drops. For a 72-inch faux wood blind, look for a 'high torque' version or one specifically rated for heavy materials.

Will the motor fit in a 2-inch or 2.5-inch headrail?

Most smart tilt motors are designed for 2-inch headrails. If you have the older 1-inch mini blinds, you're out of luck—there simply isn't enough physical space for the hardware.

Does the heat really affect the motor?

Indirectly, yes. The heat expands the PVC slats, which increases friction. The motor then has to pull more current to overcome that friction, which drains the battery and heats up the motor's internal circuitry.
