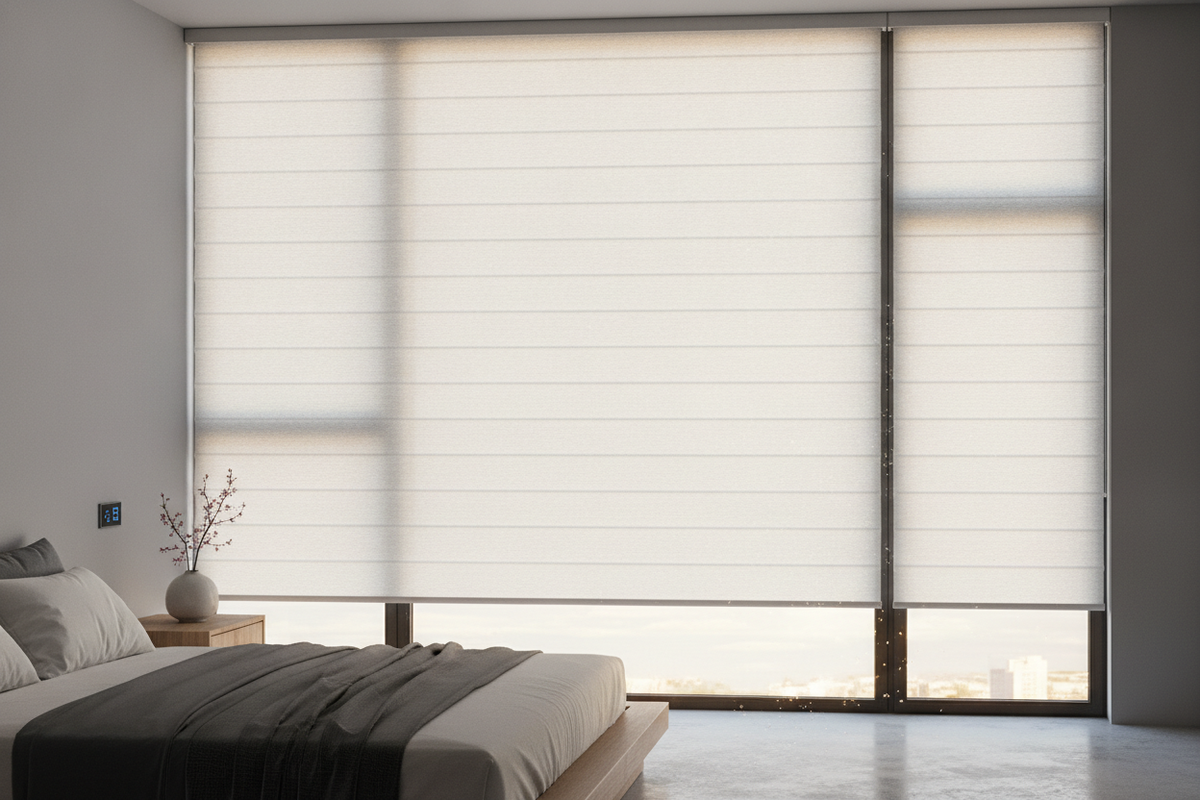

Window Roll Down Blinds Guide: Fabric Mechanics, Mounting Geometry, and Smart Automation

Understanding Window Roll Down Blinds: Hardware Architecture and Core Mechanics

Modern window roll down blinds have evolved far beyond early spring-loaded mechanisms. Today, architectural window roll down shades rely on precision-machined tubular roller assemblies, continuous loop clutch drives, and integrated tubular motors. For a broad perspective on how roller systems compare across treatment styles, explore our comprehensive guide to window blinds and shades.

The core structural element of any roll down shade is the internal roller tube. As shade spans widen, tube diameter must increase to maintain structural rigidity and prevent center deflection, often referred to as 'smiling,' which causes fabric banding or rippling across the span. Smooth operation also depends on the direction the fabric leaves the tube:

• Standard Roll (Regular Roll): The fabric unrolls from the back of the tube, keeping the material as close as possible to the window glass. This position minimizes edge light gaps and optimizes thermal reflection.
• Reverse Roll (Waterfall Roll): The material rolls over the front of the tube, concealing the roll assembly and allowing the shade to clear interior obstacles such as window cranks, latches, or trim molding.

At the base of the fabric, an engineered bottom rail provides steady tension. Whether enclosed in a heat-sealed fabric pocket or exposed as an architectural aluminum bar, the bottom rail stabilizes the drop, preventing vertical curl and keeping the shade tracking evenly during travel.

Fabric Selection Framework: Solar Weaves, Light Filtering, and Total Blackout

Selecting the right fabric profile requires balancing view-through, glare management, privacy, and room darkening. While standard top-down rollers excel at comprehensive coverage, alternative configurations like bottom-up window blinds and shades can balance lower-window privacy with upper daylighting. When choosing fabrics for traditional roll down shades, three main categories dominate residential and commercial spaces:

• Solar Screen Weaves: Engineered from woven synthetic yarns, solar fabrics reduce harsh solar glare and heat gain while preserving the exterior view during daytime hours. Tighter weaves offer higher glare reduction and UV protection, while more open weaves maintain greater exterior transparency.
• Translucent Light-Filtering Fabrics: Woven from soft polyesters, linens, or blended fibers, these materials diffuse harsh direct sunlight into ambient, soft illumination. They provide complete daytime and nighttime silhouette privacy without fully darkening the interior.
• Total Blackout Textiles: Constructed with opaque backing layers, blackout fabrics block light transmission entirely. In bedrooms, media rooms, and home theaters, these fabrics stop daylight from passing through the weave.

To address the side light gaps that naturally occur when fabric sits between mounting brackets, blackout installations often incorporate side retention channels or light-blocking U-channels mounted directly inside the window jamb.

Mounting Dynamics: Inside Mount vs Outside Mount Tolerances

Correct bracket placement ensures smooth travel and an integrated visual look. Specifiers and homeowners must choose between inside and outside mounting based on casing depth and surrounding window hardware.

An inside mount fits the roller hardware directly within the window casing recess. This creates a clean, built-in aesthetic that highlights surrounding architectural millwork. However, it requires adequate frame depth to house the tube diameter and bracket projection. Without sufficient depth, the shade roll may project past the trim line.

An outside mount places the brackets on the wall or outer window casing above the frame. This option is ideal when casing depth is shallow, when windows feature crank handles, or when maximum room darkening is required. By sizing the shade to overlap the outer trim on all sides, outside mounts substantially reduce perimeter light leakage.

For a clean aesthetic, both mount types can be paired with matching metal fascias, fabric-wrapped valances, or closed cassette enclosures that protect the rolled fabric from dust while concealing the mechanical brackets.

Smart Motorization and Control Ecosystems for Roll Down Shades

Motorization elevates roll down window blinds from passive coverings into dynamic smart home components. Modern motorized shades use quiet tubular motors nestled directly inside the roller barrel. To dive deeper into motorized architectures, review our guide to remote controlled window blinds and shades.

Motorization power delivery generally falls into two architectural categories:

• Rechargeable Battery-Powered Motors: Built-in lithium-ion battery assemblies eliminate the need for electrical wiring. They provide a streamlined retrofit solution and are easily recharged via magnetic cables or discreet solar charging panels mounted behind the window header.
• Hardwired Low-Voltage or Line-Voltage Motors: Ideal for new construction and major renovations, hardwired systems run dedicated power cables to each window opening, ensuring continuous power without manual recharging routines.

Communication protocols determine how seamlessly roll down shades integrate into whole-home automation platforms. Homeowners can select handheld radio frequency (RF) remotes for straightforward operation, or deploy smart Zigbee blinds and Matter-over-Thread motors to integrate shades into broader automation platforms. These networked systems enable scheduled raising and lowering, automated solar tracking, and unified voice control scenes.

Selecting Roll Down Solutions Across Diverse Window Types and Room Environments

Deploying roll down window shades across varied floor plans requires tailoring the hardware to specific room environments and architectural dimensions.

In high-humidity areas such as bathrooms, laundry rooms, and kitchens, fabrics should feature synthetic, moisture-resistant compositions that resist water absorption and wipe clean easily. For floor-to-ceiling glass expanses or multi-panel sliding doors, heavy-duty roller tubes with reinforced internal ribs prevent tube sagging across wide spans.

When outfitting multi-window configurations like bay windows or corner glass assemblies, precision bracket couplers allow adjacent shades to align closely, minimizing gap widths and synchronizing movement across multiple panels for a balanced, cohesive aesthetic throughout the home.
