Trapezoid Window Shades: Covering Angled and Gable Windows
on Oct 28 2026
Quick Answer: Trapezoid window shades are custom shades cut with an angled top edge to match a slanted or gable window, so they cover the glass completely instead of leaving an uncovered triangle. The best options are operable cellular shades that raise and lower along the angle, in light filtering fabric for living spaces or blackout for bedrooms. Because angled windows are usually high, motorized control makes them practical day to day.
Angled windows (trapezoids, right-angle triangles and the gable windows that fill the peak of a vaulted wall) are where a lot of homes leave glass bare, simply because standard shades are rectangles. That uncovered glass causes glare, heat gain and a hot spot in the room every summer afternoon. Below we cover the shapes, the treatment options, and how to choose from the trapezoid shades in our specialty shapes shades collection.
What Counts as a Trapezoid or Angled Window?
A trapezoid window has four sides with one sloped edge, usually the top. The most common shapes in American homes are:
- Right trapezoid: one vertical side taller than the other, with a sloped top. Often found in pairs either side of a gable.
- Symmetrical gable (pentagon or "house" shape): two sloped edges meeting at a peak over a rectangle.
- Triangle: a sloped top meeting the bottom edge with no short vertical side, common at the very top of a gable wall.
- Clerestory angles: long, shallow trapezoids along a sloped ceiling line.
Large gable walls usually combine several of these, for example a row of rectangular windows below and two right trapezoids above that meet in the middle. Each angled piece needs its own shade made to that exact shape.
Why Cover Angled Windows? Glare, Heat and Natural Light
Plenty of people leave gable windows bare to enjoy the natural light, and on a north-facing wall that can be fine. On south and west walls, though, the high glass in a gable lets in sun that the shades below cannot stop:
- Glare lands on TVs, computer screens and faces long after the lower shades are closed.
- Heat gain collects at the top of a vaulted room, which is already where warm air rises.
- Fading hits floors and furniture from a high angle all afternoon.
- Bedrooms under a gable never get truly dark, because the peak glows at sunrise.
Covering angled glass also improves energy efficiency. Honeycomb shades trap air in their cells, which slows heat moving through the glass in both summer and winter.
Angled Window Treatments Compared
| Option | How it covers the angle | Operable? | Best for |
|---|---|---|---|
| Trapezoid cellular shades | Fabric cut to the exact slope | Yes, raises and lowers along the angle | Most gable and trapezoid windows |
| Fixed (stationary) shaped shades | Fabric fills the shape permanently | No | Windows where you never want the view |
| Angled shutters | Frame and louvers built to the slope | Louvers tilt; panel stays put | Traditional interiors, lower angled windows |
| Angled blinds | Slats cut to the slope | Tilt only in most cases | Budget projects, low windows |
| Rectangular shade below the angle | Covers only the rectangle; angle left bare | Yes | North-facing gables where glare is no problem |
For real light control on angled windows, the deciding question is whether you want to see out of the angled glass sometimes. If you do, you need a shade that actually opens. A stationary shape looks tidy but turns a window into a wall, and you lose the view and daylight you paid for.

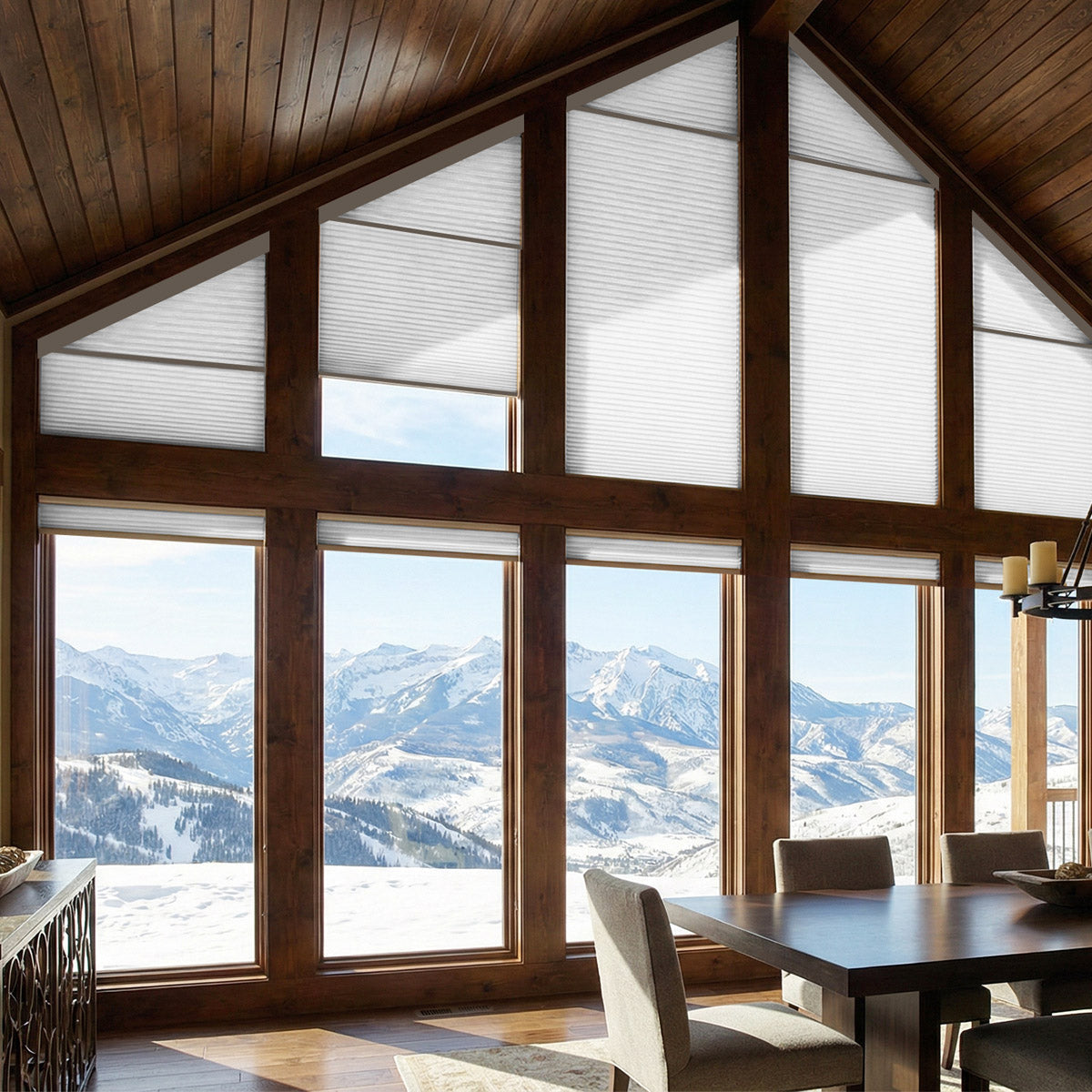

How Trapezoid Cellular Shades Work
An operable trapezoid shade has a headrail along the bottom or sloped edge and fabric that stacks as it opens, following the angle so the shade keeps its shape at every position. Because the slope changes the length of each pleat, these shades are built to order from your measurements, and the hardware is specific to the window. That is why installation is more involved than on a standard rectangle, and why measuring accurately matters so much.
Weffort makes two versions:
- Motorized Light Filtering Trapezoid Cellular Shades diffuse sunlight into a soft glow. Good for living rooms, lofts, stairwells and great rooms where you want natural light without glare.
- Motorized Blackout Trapezoid Cellular Shades block sunlight through the fabric for bedrooms, media rooms and kids' rooms.
Both give you adjustable light control at the peak of the wall, use single-cell honeycomb construction, are fully cordless, and are designed to raise and lower smoothly even on steep angles rather than sit fixed in place.
Remote Control and Smart Home Options
Gable windows often sit 12 to 20 feet up. At that height, a shade is only useful if you can move it without a ladder. Weffort trapezoid shades are motorized and can be run from a remote control, a wall switch or a smart home system compatible with Alexa, Google Assistant and Apple HomeKit. You can:
- Schedule the gable shades to close at 1 p.m. on west-facing walls in summer.
- Group the trapezoids with the rectangular shades below so the whole wall moves together.
- Open the peak at sunrise for daylight while the lower bedroom shades stay down.
Our Apple HomeKit setup guide walks through pairing, and how to cover hard-to-reach windows covers automation ideas for vaulted ceilings, stairwells and foyers.
Measuring Trapezoid Windows
An angled shade can only be as accurate as the numbers behind it. For each angled window you will measure:
- Bottom width inside the frame.
- Left height and right height along each vertical side (one may be zero on a triangle).
- Sloped length along the angled edge, from corner to corner.
- Which side is taller, as seen from inside the room.
Measure to the nearest 1/8 inch and do not round. Use the step-by-step trapezoid shade measuring guide, and see our sibling post on measuring skylights and specialty shape windows for tips on handling a whole gable wall with several shapes.
How to Choose Gable Window Shades
| If your angled window... | Choose |
|---|---|
| Is in a living room or great room and causes glare | Light filtering trapezoid cellular shades |
| Is in a bedroom, nursery or media room | Blackout trapezoid cellular shades |
| Is above a wall of doors or windows | Same fabric and color as the shades below, grouped for one-touch control |
| Faces north with a private view | Leave it open, or use light filtering for winter insulation only |
| Is more than 10 feet up | Motorized with remote plus a smart home schedule |
Color matters more than people expect on a gable wall. Matching the trapezoids to the shades below in the same fabric makes the wall read as one design. Light colors like white and cream disappear against white trim, while dark grey frames a view and hides dust on high glass. For curved windows in the same room, see our sibling guide to arch window shades, and to understand how cell size affects insulation, read the cellular shade cell size guide.
Frequently Asked Questions
Are there blinds for angled windows?
Yes. Angled blinds, shutters and shades are all made to fit trapezoid and triangle shapes. Cellular shades are the most practical because they insulate, filter light and can raise and lower along the slope instead of staying fixed.
How do you dress a gable end window?
Fit each angled pane with its own trapezoid or triangle shade, match the fabric to the shades on the windows below, and motorize anything you cannot reach. Choose light filtering for living spaces and blackout for bedrooms.
How do blinds work in a gable end?
Operable gable shades stack along the angled edge as they open, keeping the shape at every position. Fixed versions fill the shape permanently and do not move.
Do trapezoid window shades help with energy efficiency?
Yes. A fitted cellular shade traps air against the glass, reducing summer heat gain and winter heat loss through high glass where heat tends to collect.
Can trapezoid shades be motorized?
Yes. Weffort's trapezoid cellular shades are motorized and work with a remote, wall switch or compatible smart home systems for voice control and schedules.
Cover Your Angled Windows
Identify each shape on your gable wall, decide which panes need light filtering and which need blackout, and plan motorized control for anything above arm's reach. Compare both trapezoid options in the Weffort specialty shapes shades collection, and order free fabric samples to see the colors in your own light first.
