Achieving Total Darkness: The Mechanics and Benefits of Side Track Window Treatments

For many homeowners and shift workers, the quest for a truly dark room often ends in frustration. You purchase high-quality blackout fabrics, mount them perfectly, and yet, as soon as the sun rises, a distinct halo of light glows around the edges of the window. This phenomenon is known as light leakage, and standard window treatments are structurally unable to prevent it. The solution lies in a specific architectural addition: blackout shades with side tracks.

To understand why this hardware is necessary, one must look at the physics of light. Light behaves like a fluid; it will flow through any available gap. Standard roller shades hang freely, leaving a gap between the fabric and the window frame. By integrating window shade tracks, you create a sealed channel that traps the fabric edges, eliminating these gaps and significantly improving light control and thermal insulation.

The Problem with Standard Blackout Blinds

When you purchase standard blackout treatments, the fabric itself is opaque. However, the installation method usually creates a vulnerability. Whether inside-mounted or outside-mounted, there is almost always a gap ranging from 1/8 inch to 1/2 inch on either side of the shade. This gap is necessary for the operating mechanism of the blind to move freely without scraping the window jamb.

While this gap seems small, the human eye is incredibly sensitive to contrast. In a pitch-black room, even a sliver of sunlight entering through the side can illuminate the entire space, rendering the "blackout" feature partially ineffective. Blackout blinds with side tracks solve this by extending the window frame to meet the shade, rather than forcing the shade to meet the frame.

How Side Track Systems Work

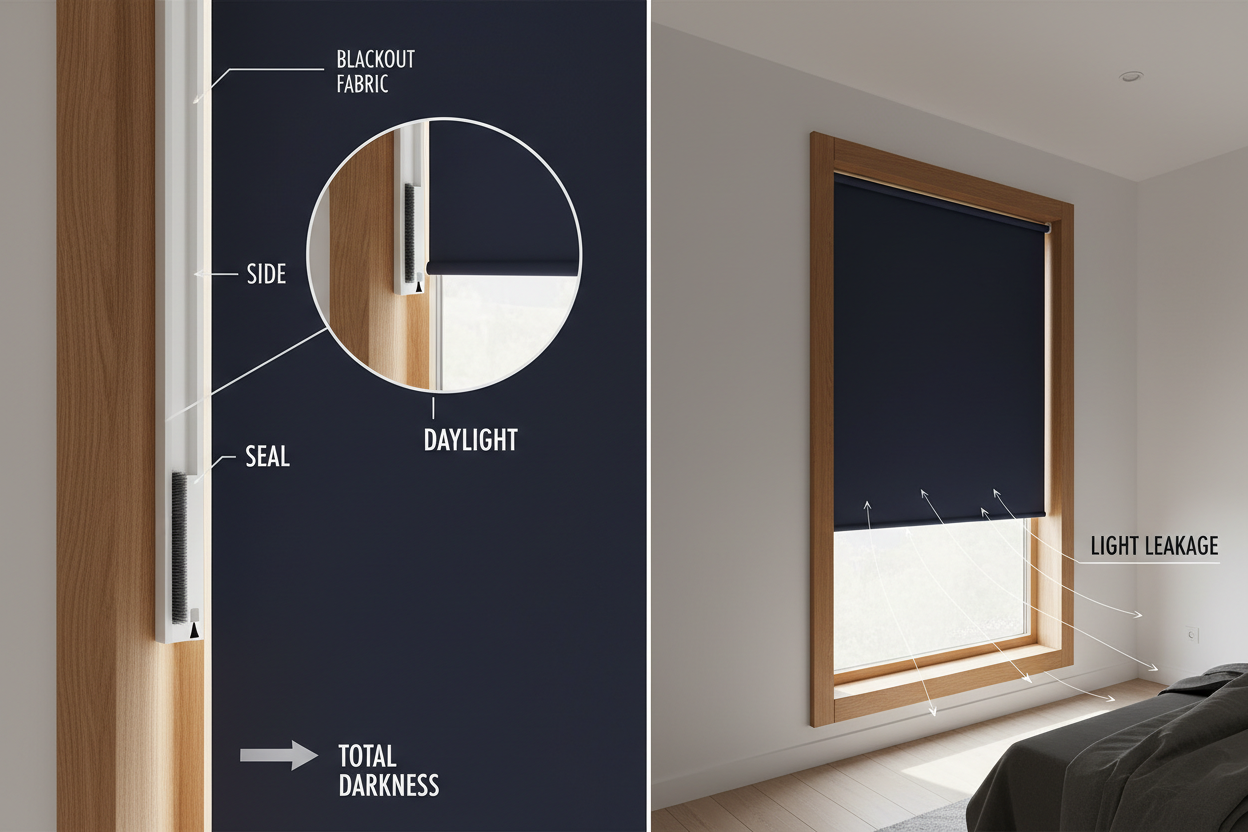

The engineering behind blackout roller blinds with side tracks is relatively simple but highly effective. The system consists of the main roller shade and two vertical channels—often made of aluminum or PVC—that run down the sides of the window frame. These are the side tracks for roller shades.

The fabric of the shade rides inside these channels. Depending on the manufacturer, the roller shade track might be U-shaped or L-shaped. A U-channel captures the fabric on both sides, while an L-channel usually rests against the window frame to block light from entering at an angle. High-end tracked roller blinds may also feature a brush strip or wool pile lining inside the track. This internal lining reduces friction, prevents the fabric from rattling in a draft, and creates an even tighter seal against light intrusion.

Personal Experience: The Nursery Retrofit

I first encountered the necessity of window blinds with side tracks when setting up a nursery. We had installed top-tier blackout roller shades, assuming that the heavy vinyl fabric would be enough. However, the streetlamp outside the window cast a sharp beam of light through the half-inch gap on the right side, projecting directly onto the crib. It was a classic example of hardware limitations. Rather than replacing the entire blind, I sourced aftermarket light blocking side tracks for blinds. These were adhesive PVC channels that I cut to size and attached to the inner window frame. The difference was immediate. The room went from "dim" to physically unable to see your hand in front of your face. This experience highlighted that the fabric is only half the equation; the blackout blind side tracks are what actually secure the environment.

Varieties of Tracked Systems

When shopping for window shades with side tracks, you will generally encounter two categories: integrated systems and retrofit solutions.

Integrated Roller Systems

These are purchased as a complete unit. The blackout roller blinds side track is designed specifically for the roller header. The cassette (the box at the top holding the rolled fabric) connects seamlessly to the side channels. This offers the smoothest operation because the roller blind side track is calibrated to the exact width of the fabric bar. These systems are often found in hotel rooms and high-end media rooms.

Retrofit Side Tracks

If you already have shades installed, you do not necessarily need to buy new ones. You can purchase tracks for blinds separately. These are essentially L-shaped or U-shaped strips that you adhere or screw into the window jamb. While effective, they require precise installation. If the side track blackout blinds are not perfectly parallel, the shade may bind or telescope (roll up unevenly) when raised. It is crucial to measure the distance between the tracks at the top, middle, and bottom of the window to ensure the frame is square.

Thermal and Acoustic Benefits

While light control is the primary driver for installing blackout window shades with side tracks, the secondary benefits are substantial. By sealing the edges of the window, you are essentially creating a trapped layer of dead air between the glass and the shade fabric.

In the winter, this trapped air acts as an insulator, preventing the cold surface of the glass from cooling the room air. In the summer, it prevents solar heat gain. Roller blinds with tracks can increase the R-value (insulation rating) of a window significantly more than a free-hanging shade. Furthermore, the side track window shades dampen noise. The seal prevents sound waves from traveling through the gaps, making these systems ideal for homes near busy streets.

Selecting the Right Material

The durability of the roller shade side track depends heavily on the material. PVC tracks are lightweight, cost-effective, and easy to cut with a simple hacksaw for DIY projects. However, they can yellow over time with UV exposure and may become brittle.

Aluminum roller blind side tracks are the professional standard. They are rigid, do not degrade in sunlight, and can be powder-coated to match the window frame color perfectly. For shades with side tracks intended for daily use, aluminum is the superior choice to ensure the tracks do not warp or bend, which would compromise the operation of the blind.

Installation Considerations

Installing blackout shades with tracks requires more precision than standard blinds. Because the fabric travels inside a fixed channel, there is very little margin for error. If your window frame is "out of square" (meaning the width at the top is different from the width at the bottom), the blackout roller shade side track may cause the fabric to jam.

For windows that are significantly out of square, an outside mount (where the blinds with side tracks are mounted on the wall surface rather than inside the frame) is often the safer option. This allows the tracks to be installed perfectly parallel regardless of the window frame's imperfections.

In conclusion, while standard blackout shades offer privacy, they rarely offer total darkness due to the inevitable light gaps. Incorporating side track blinds changes the functional nature of the window treatment from a simple hanging cover to a sealed architectural element. Whether you choose a fully integrated system or add roller blinds with side tracks to your existing setup, the result is a controlled environment conducive to better sleep and energy efficiency.
