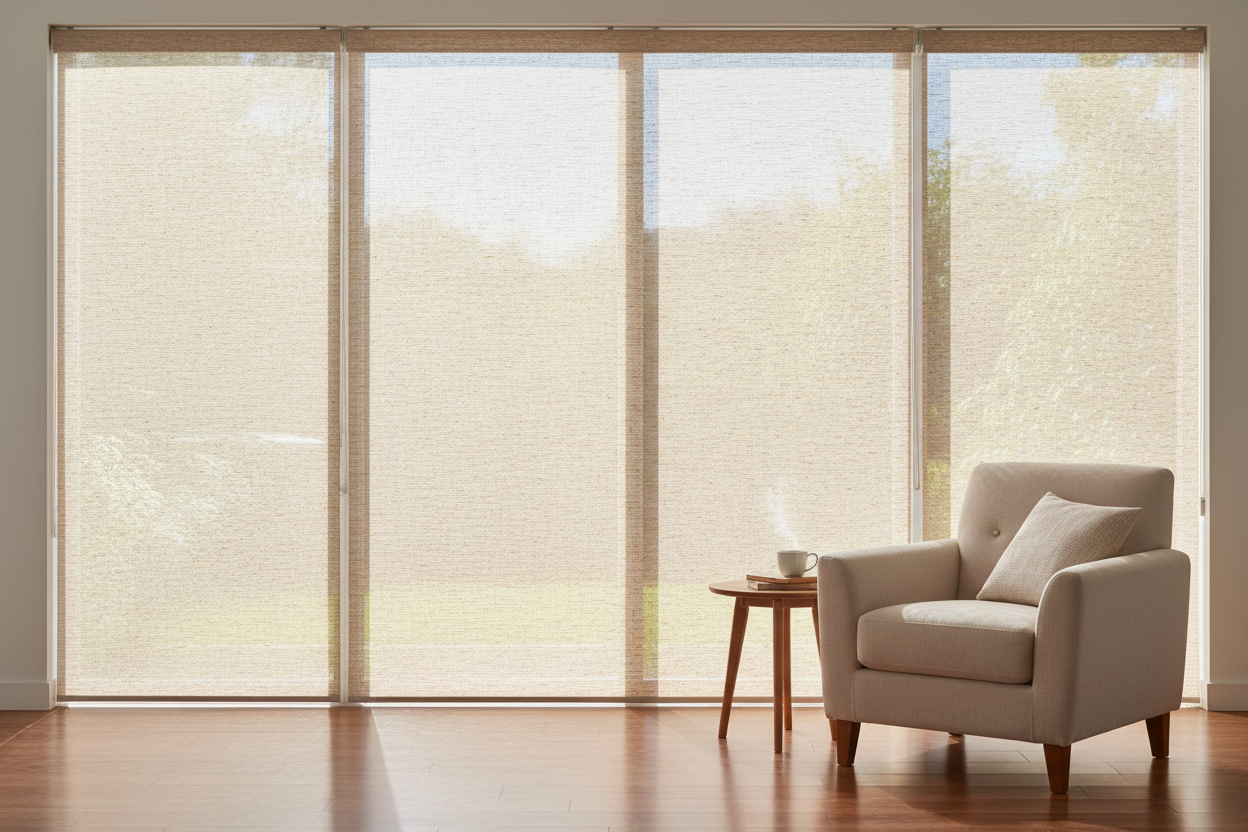

Beat the Heat: A Practical Guide to Selecting and Installing Manual Sun Shades

For homeowners looking to control natural light and temperature without the complexity or expense of motorized systems, manual sun shades remain the gold standard of reliability. Whether you are trying to cool down a west-facing patio or prevent UV damage to interior furniture, the mechanical simplicity of a hand-operated system offers a distinct advantage: there are no motors to burn out and no electrical wiring to run. Selecting the right shade, however, requires an understanding of opacity, material durability, and the specific mechanics of the roll-up system.

Understanding the Mechanics: Cranks, Chains, and Springs

When we discuss manual sun shades, we are generally referring to three distinct operating systems. Choosing the right one depends largely on the size of the shade and whether it is installed indoors or outdoors.

The most robust option for exterior applications is the crank-operated mechanism. These utilize a removable wand that hooks into a gear loop. The mechanical advantage provided by the gear reduction allows users to lift heavy, wide spans of fabric with minimal effort. In my experience, this is the superior choice for outdoor patios because the lack of hanging cords eliminates safety hazards for children and pets, and the gear mechanism naturally locks the shade in place when you stop turning.

Alternatively, the beaded chain or continuous cord loop is common for lighter, semi-outdoor, or indoor manual roll up shade systems. A clutch mechanism holds the shade at the desired height. While smooth, these are susceptible to wind issues if used outdoors; the chain can bang against the wall or window frame unless secured with a tensioner.

Finally, cordless spring-loaded systems exist, where a tug on the bottom bar retracts the shade. While aesthetically clean, these can be temperamental on larger windows and are often difficult to reach on high installations.

Fabric Science: Opacity and UV Protection

The hardware holds the unit together, but the fabric does the work. The performance of a manual roll-up sun shade is dictated by its "openness factor." This percentage refers to the tightness of the weave and how much UV light passes through.

• 1% to 3% Openness: These fabrics provide maximum privacy and heat rejection. They are ideal for areas with intense direct sun where glare reduction is the priority. The trade-off is a significant reduction in outward visibility; it can feel like looking through a dense screen.
• 5% Openness: This is widely considered the industry sweet spot. It blocks approximately 95% of UV rays, protecting flooring and furniture from fading, yet allows enough light transmission to maintain a view of the outdoors.
• 10% Openness: These offer the best view and airflow but sacrifice heat control. These are best suited for north-facing areas or locations where insect protection is more important than heat reduction.

Material composition also matters. For exterior use, PVC-coated polyester or HDPE (High-Density Polyethylene) are standard because they resist mold, mildew, and fading. Interior shades often use lighter fiberglass blends that offer a refined texture but may not withstand heavy weather.

A Note on Installation and Wind Management

One aspect often overlooked during the purchase of a manual roll up shade is wind mitigation. Unlike interior blinds, an outdoor shade acts like a sail. If not properly secured, a sudden gust can dislodge the roller from its brackets or damage the fabric.

Most high-quality exterior shades come with a tie-down system. This usually involves rings on the bottom hem bar that hook into bungees or clips mounted to the wall or railing. More advanced systems use side cables—steel wires running vertically from the headbox to the floor—that guide the bottom bar up and down. This prevents the shade from blowing around while it is being raised or lowered.

When installing these, mounting into wood studs or masonry is non-negotiable. The torque generated by a wind gust on a nearly closed 8-foot shade is substantial. Drywall anchors are rarely sufficient for exterior or heavy interior installations.

Personal Experience: The West-Facing Porch Solution

I learned the value of a high-quality manual system firsthand when dealing with a screened-in porch that was essentially unusable between 4:00 PM and sunset during the summer. The low angle of the sun rendered the space blindingly bright and uncomfortably hot. I initially considered a motorized solution but decided against it due to the lack of a nearby power outlet and the high cost of battery-operated retrofits.

I installed a 10-foot wide, crank-operated manual roll-up sun shade with a 5% openness factor. The installation process took about an hour, requiring a hammer drill for the brick veneer. The difference was immediate. The ambient temperature on the porch dropped by roughly 10 to 15 degrees Fahrenheit almost instantly upon lowering the shade. The crank mechanism proved to be the right choice; it felt substantial and allowed me to fine-tune the height to block the sun while keeping the bottom foot open for airflow. The most critical lesson I learned, however, was about the tie-downs. I neglected to secure the bottom bungees one afternoon, and a thunderstorm rolled in. The shade flailed violently, nearly bending the bottom rail. Since then, engaging the tie-downs has become a standard part of the operation routine.

Maintenance and Longevity

The longevity of manual sun shades is generally superior to motorized versions, simply because there are fewer components to fail. However, they are not maintenance-free. If you live in a coastal area, salt spray can corrode the clutch or crank mechanism if it is not made of stainless steel or high-grade aluminum.

Cleaning should be done gently. A soft-bristle brush and a mixture of water and mild dish soap are usually sufficient to clean the fabric. Using a high-pressure washer is discouraged as it can distort the weave of the fabric, altering the openness factor and reducing UV protection. For the mechanism itself, a small amount of silicone spray lubricant (not oil-based, which attracts dust) applied to the gear or chain clutch once a year keeps the operation smooth and silent.

Energy Efficiency and Cost Implications

Beyond comfort, these shades are an investment in energy efficiency. By blocking solar heat gain before it enters the home (in the case of exterior mounting), you significantly reduce the load on your air conditioning system. Exterior shading is roughly seven times more effective at stopping heat than interior blinds, as the heat is dissipated outside the glass rather than trapped between the blind and the window.

While high-end custom manual shades can cost several hundred dollars, they typically pay for themselves over time through reduced cooling costs and the preservation of interior furnishings. When comparing options, look for hardware warranties and UV-rated fabrics to ensure the investment lasts.

Final Thoughts on Selection

When shopping, prioritize the mechanism quality and fabric density over aesthetics alone. A manual roll up shade is a functional tool first and a design element second. Ensure the brackets are heavy-duty, the clutch or crank feels smooth without grinding, and the fabric edges are sealed to prevent fraying. With the right selection, a manual shade system provides a seamless blend of protection and open-air enjoyment.
