Blackout Shades for Plantation Shutters: Layering, Depth Clearance, and Smart Motorization Guide

Plantation shutters deliver architectural beauty, timeless appeal, and flexible daytime light filtering. However, homeowners who prioritize complete darkness in bedrooms, nurseries, or media rooms often discover that traditional louvered shutters cannot block all incoming light. Finding the right blackout shades for plantation shutters provides the ideal hybrid solution, combining structural woodwork with effective light-blocking fabrics.

Understanding Light Bleed in Plantation Shutters

While solid shutter panels provide significant privacy, louvered designs inherently allow small corridors of ambient light to enter the room. This light bleed typically occurs across three primary zones:

• Inter-louver gaps: Even when louvers are tilted fully upward or downward, tiny seams between individual louvers allow daylight to slip through.
• Frame and hinge perimeters: Clearance gaps around the shutter framing and panel hinges prevent sticking, but these same tolerances permit light leakage around the casing edges.
• Tilt mechanism clearances: Whether utilizing a traditional central tilt rod or a hidden rear tilt spine, mechanical movement requires spacing that prevents a 100% airtight light seal.

When evaluating room darkening shade performance, adding a supplementary shading layer behind or within the shutter casing eliminates these peripheral light paths without sacrificing the outward aesthetic of your shutters.

Mounting Configurations: Behind Shutters vs. Integrated Systems

Homeowners exploring how to make plantation shutters blackout generally choose between two primary architectural approaches: installing secondary blackout shades behind shutters or selecting custom plantation shutters with integrated blackout blinds.

1. Secondary Shades Mounted Behind Existing Shutters

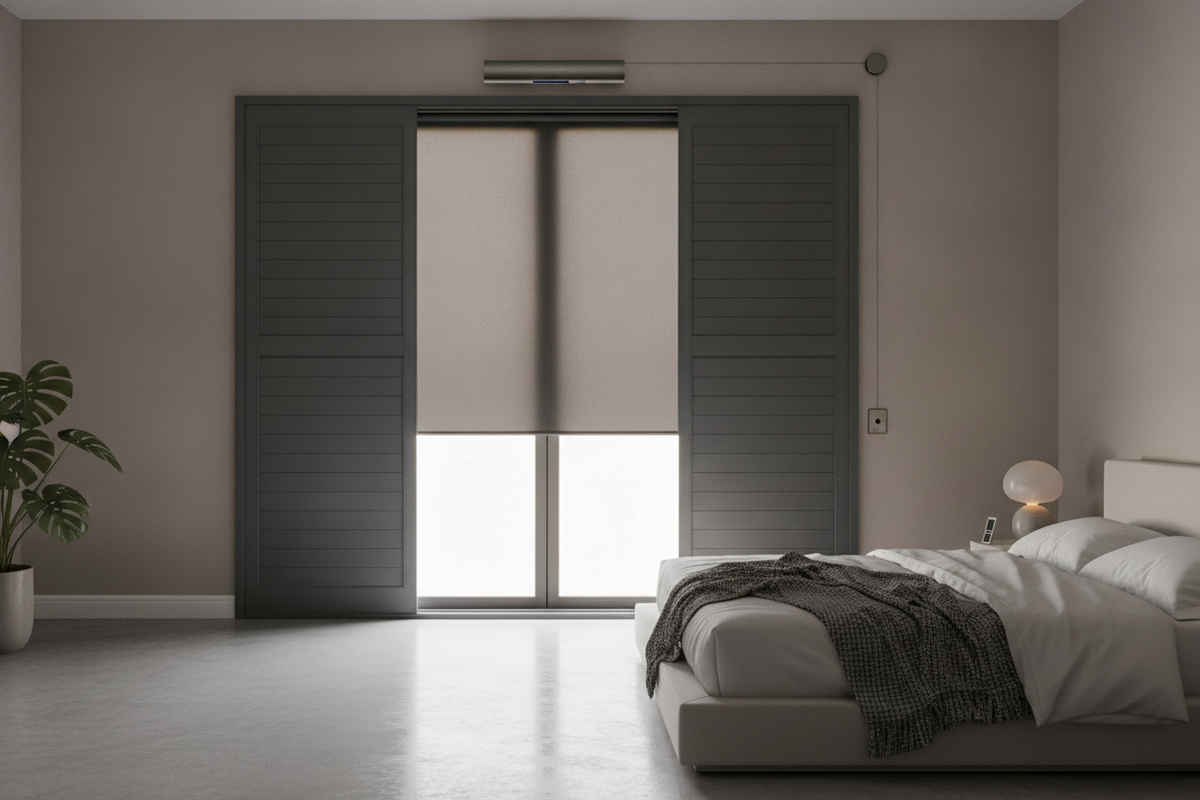

The most common retrofit strategy involves installing a slim blackout shade directly against the window glass, tucked into the window jamb behind the existing shutter frame. When lowered, the shade blocks the raw solar energy and light before it reaches the shutter louvers. When raised, the shade conceals neatly at the top of the window frame, allowing normal shutter operation and louver tilting.

For deeper insights into dual-treatment window design, our guide on layering motorized shades with plantation shutters explores layout planning and structural mounting configurations in detail.

2. Integrated Shutter-and-Blind Assemblies

Some custom shutter installations incorporate a dedicated secondary channel built directly into the shutter frame. These integrated systems run a cellular fabric along side channels situated directly behind the louvers. While effective, integrated systems are typically installed as all-in-one new assemblies rather than retrofitted onto existing woodwork.

Choosing the Right Shade Profile for Tight Depth Clearances

The primary engineering challenge when installing blackout shades behind shutters is depth clearance. Window jambs must accommodate both the shade mechanism and the rear projection of the shutter louvers when fully tilted open.

Ultra-Compact Cellular Shades

Pleated honeycomb fabrics offer one of the shallowest mounting depths available. Premium blackout cellular shades fold tightly into a slim upper headrail, minimizing vertical obstruction. The cellular design also provides an interior foil or opaque barrier that prevents light penetration while offering supplementary thermal insulation against window pane draftiness.

Slim Motorized Roller Shades

For windows with adequate frame depth, compact motorized blackout roller shades present a smooth, uniform surface that drops cleanly behind the shutter frame. Because roller shades feature a continuous fabric roll, selecting a low-profile tube diameter is essential to avoid physical contact with the shutter louver sweep.

Smart Motorization and Control Strategies Behind Shutters

Operating a manual shade located behind a closed shutter panel can be awkward. Reaching through louvers or swinging shutter doors open twice a day quickly becomes tedious. Smart motorization solves this challenge by enabling seamless operation without touching the shutter assembly.

• Wireless Motorization: Battery-powered tubular motors fit discreetly inside shade headrails or roller tubes, eliminating the need to drill through finished trim for electrical wiring.
• Automated Scheduling: Configure morning and evening scenes to lower blackout fabrics at sunset and raise them before the morning alarm, keeping bedroom spaces pitch-black throughout the night.
• Smart Hub Integration: Synchronize your shades with smart home ecosystems, allowing voice control or remote access while keeping shutter louvers in your preferred daytime tilt angle.

Jamb Depth Measurement and Practical Installation Considerations

Before selecting shade hardware, accurate measurement of your window reveal is critical. Learning how to make shutters blackout requires verifying that moving parts do not collide.

1. Measure the Louver Sweep: Open the shutter louvers to a horizontal (90-degree) position and measure how far the rear edge projects backward toward the glass.
2. Check Window Obstructions: Identify any window latches, mullions, or tilt-in window handles that encroach on the inner glass reveal.
3. Calculate Headrail Clearance: Confirm that the top jamb provides adequate flat mounting area for your shade brackets without interfering with top-hinge swings or shutter frame fasteners.
4. Ensure Side Gap Alignment: Choose a shade width that extends as close to the inner jamb edges as possible to minimize side-channel halo effects without rubbing against the window frame.

By selecting slim-profile fabrics and incorporating wireless smart motorization, you can enjoy the classic architectural elegance of plantation shutters alongside the reliable darkness of modern blackout shading.
