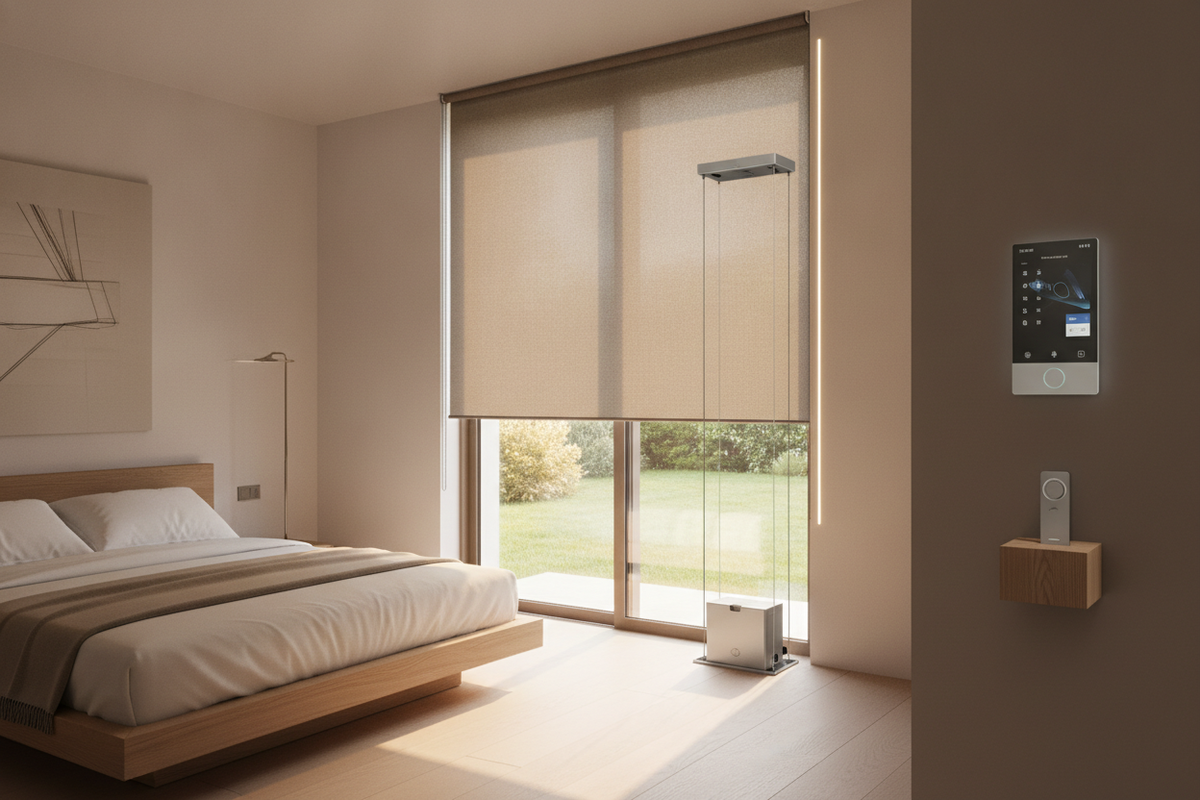

Bottom Up Roller Shade Engineering: Tension Mechanics, Motorized Lift Architecture, and Smart Automation

Introduction: Inverting the Roller Shade Paradigm for Daylight and Privacy

Urban architecture frequently introduces a persistent lighting dilemma: street-facing windows invite abundant natural daylight while simultaneously exposing living spaces to public sightlines. Conventional top-down window treatments resolve privacy concerns by covering the upper portion of the glazing, which obstructs natural sky illumination and leaves the lower pane visible unless fully lowered. Installing a bottom up roller shade inverts this relationship, shielding the lower sightline while preserving open overhead views.

Unlike traditional downward-deploying treatments, roller blinds from bottom up operate against gravity. Fabric rises from a casing anchored at the window sill or floor line, ascending toward the upper jamb to any preferred height. This setup functions effectively as pull up blinds for windows in high-density residential layouts, ground-floor apartments, and open-concept office environments where privacy and natural light must coexist.

Understanding the mechanical architecture of these systems is essential before specifying them for a home or commercial project. The design requires balanced tensioning, lateral guide cables, and purpose-built motor or spring assemblies to maintain crisp fabric presentation across the entire expanse.

Mechanical Physics: How Bottom to Top Roller Blinds Defy Gravity

Standard roller shades rely on gravitational pull to keep textiles taut as the tube unwinds from above. In contrast, bottom to top roller blinds require active mechanical counter-tension to draw fabric upward without sagging, wrinkling, or skewing along the travel path.

At the foundation of a roller blind bottom up design is a continuous tension loop. As the fabric roll at the sill rotates to release material, fine-gauge draw wires or cables routed through top-mounted return pulleys pull the hem bar upward. These cables maintain constant lateral and vertical force across the textile. To explore configuration nuances, reviewing a dedicated bottom roller shade guide can help clarify how tension elements interact within diverse architectural openings.

Precision tracking relies on slender guide wires running vertically along both sides of the window reveal. These guide cables anchor the hem bar, mitigating air-current flutter and preventing fabric telescoping—the uneven spiral winding that occurs when a roller tube loses perpendicular alignment with its guide frame. In manual configurations, internal spring-tension drums balance the pull force, whereas motorized setups use synchronized dual-action spools to manage lift wires and fabric deployment simultaneously.

Motorization and Power Architectures for Bottom-Up Operation

Motorizing bottom up roller blinds introduces unique structural options for motor and spool placement. Integrators generally select between two primary drive layouts depending on framing depth and power accessibility:

• Bottom-Tube Drive: The motor sits directly within the lower roller tube. As the motor turns, an internal spring or tensioned top return system keeps the ascending hem bar taut. This approach consolidates the primary drive mechanism near the sill.
• Top-Mounted Draw Drive: The drive motor rests in a top cassette, actively winding the draw cables onto spools to pull the hem bar upward, while a tensioned idler spring in the bottom tube takes up or releases fabric smoothly.

For smart shading projects using motorized options like a modern roller shades product, power routing requires careful planning during the rough-in phase. Concealed low-voltage hardwiring eliminates visible power cables and ensures consistent operation across multi-shade scenes. When retrofitting finished spaces where running wire through window jambs is impractical, high-capacity internal rechargeable battery assemblies provide a clean visual result without extensive drywall modification.

Integrating these systems with home automation platforms allows shade elevation to respond dynamically to solar elevation, ambient light sensors, and occupancy patterns, automatically raising the shade to block direct glare while maintaining open views toward the sky.

Fabric Selection Dynamics: Light-Filtering vs. Blackout in Tensioned Systems

Fabric behavior under bidirectional tension differs markedly from standard gravity-hung textiles. Because a roller shade from bottom up experiences constant lateral and vertical pull, the chosen weave must exhibit high dimensional stability to avoid edge curling or long-term weave distortion.

Screen and translucent textiles from a curated roller shades collection perform exceptionally well in bottom-up applications. These weaves diffuse harsh direct sunlight, minimize interior glare on digital displays, and allow daylight to illuminate ceilings while blocking direct ground-level viewing angles.

Opaque textiles introduce specific mechanical considerations. When using room-darkening materials, tension across the hem bar must remain uniform to prevent horizontal wave patterns. Additionally, because the lower roller tube and brackets occupy space along the window sill, designers must plan for minor perimeter light gaps or specify integrated side channels if complete light isolation is desired across the full opening.

Architectural Mounting, Casing Clearances, and Window Suitability

Careful measurement of casing clearances ensures smooth movement without mechanical binding. For a deeper comparative perspective on dual-directional systems, consulting a comprehensive bottom roller shades guide helps identify how sill profiles influence hardware selection.

Inside-Mount Considerations

An inside mount provides the cleanest profile, recessing the roller tube and top return pulleys within the window frame. This approach requires sufficient jamb depth to accommodate both the bottom roll diameter when fully retracted and the compact upper pulley housings without interfering with window latches or inward-tilting sashes.

Outside-Mount Assemblies

When jamb depth is limited or window sashes operate inward, mounting the assembly on the wall or casing trim provides a practical alternative. Guide cables anchor directly to the trim, allowing the shade assembly to clear existing window hardware entirely.

Ideal Window Applications

• Ground-Floor Living Areas: Restricts sightlines from sidewalks while allowing overhead daylight penetration.
• Clerestory and Bathroom Glazing: Shields vanity and bathing areas while keeping upper glass unobstructed for sky views.
• Urban Lofts with Floor-to-Ceiling Windows: Creates a customizable privacy threshold without darkening large rooms.

Realistic Trade-Offs, Maintenance, and Decision Framework

While bottom-up roller systems offer unmatched privacy-to-daylight ratios, selecting them involves evaluating specific structural trade-offs against conventional window coverings.

The most noticeable visual feature of bottom-up shades is the presence of lateral tension wires running along the window frame. In minimalist spaces, these slender stainless-steel or nylon-coated lines remain visible even when the shade is fully lowered. For homeowners seeking a completely wire-free look, traditional top-down shades or layered drapery treatments may be preferable.

Routine maintenance includes keeping window sills free of dust and debris, which prevents small particles from winding into the bottom fabric roll. Tension cables may also benefit from occasional calibration to ensure balanced tracking over years of daily movement.

When deep room darkening is the primary objective, layering a bottom-up screen shade with a secondary top-down treatment from a specialized roller shades collection provides complete flexibility: deploy the bottom-up shade for daytime privacy and lower the top treatment for restful darkness at night.
