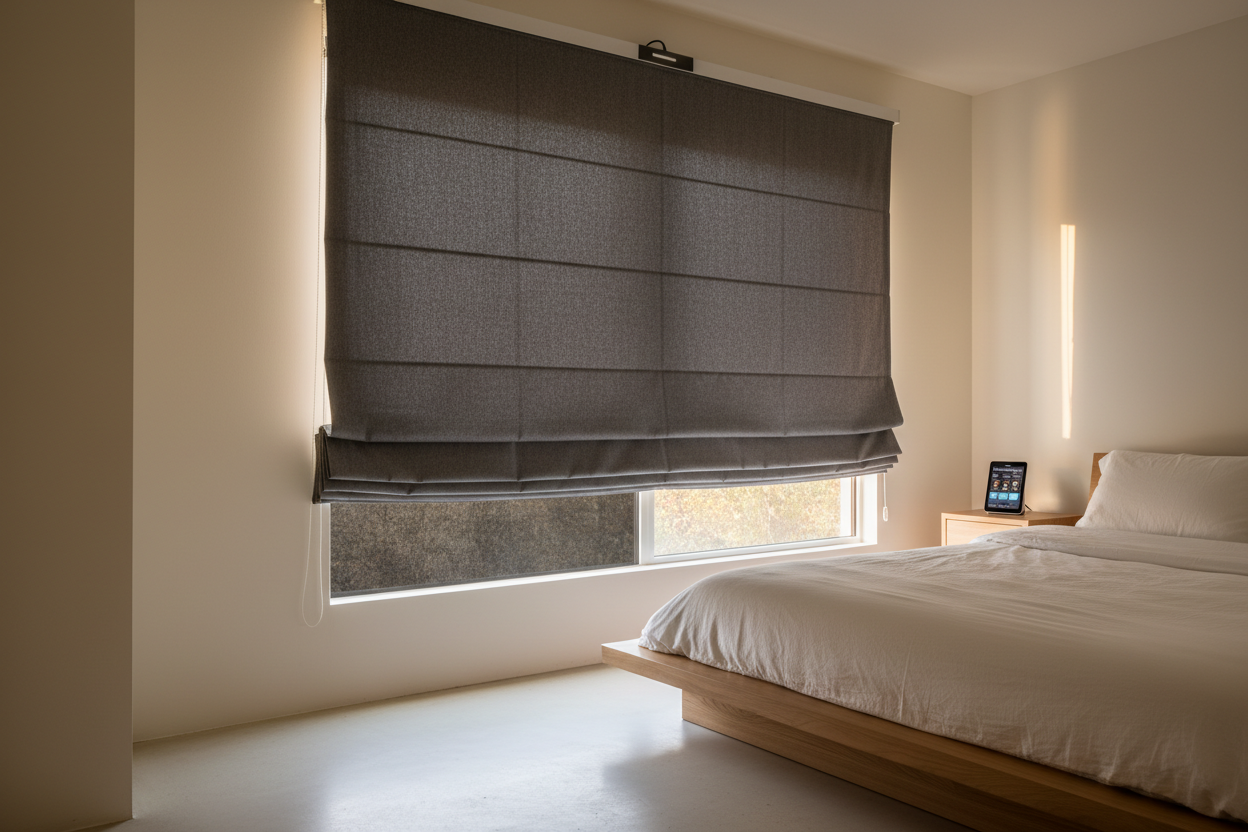

I Built DIY Blackout Roman Shades (And Fried 3 Smart Motors)

I woke up at 5:30 AM with a laser-focused beam of sunlight hitting me directly in the eye. My manual shades were a mess of tangled cords, and I thought, 'I am a tech guy, I can automate this.' I was wrong. Building diy blackout roman shades sounds like a simple weekend project, but it quickly turned into a graveyard of burnt-out electronics and expensive fabric scraps.

• Torque is King: Standard 1.1Nm motors cannot handle heavy, stiff vinyl blackout liners.
• Fabric Choice: Use soft-drape blackout lining to reduce folding resistance.
• Hardware: Replace plastic mounting brackets with steel to prevent gear misalignment.
• Light Gaps: Side channels are mandatory if you actually want a dark room.

The Heavy Fabric Problem I Didn't See Coming

I assumed any motor could lift a bit of cloth. I was arrogant. I bought heavy-duty blackout fabric from a local craft store and slapped it onto a standard 25mm smart tube. The motor groaned for exactly three seconds before a distinct smell of ozone filled the room. That was $150 down the drain in under a minute.

The issue wasn't just the weight. It was the friction. When you fold heavy fabric into those classic Roman pleats, the material resists being compressed. My motor was fighting the fabric's physical structure, not just its mass. I realized too late that my 'heavy duty' fabric was actually a motor killer.

Why Store-Bought Blackout Liner Kills Smart Motors

Physics doesn't care about your smart home dreams. Most DIY motors have a torque rating of about 1.2Nm. While I was frantically searching for what went wrong, I found a Build Smart The Ultimate Diy Blackout Roman Shades Guide that hinted at the dangers of heavy materials. Most store-bought blackout liners are vinyl-based and incredibly stiff.

When these liners fold, they create massive resistance. This isn't just about the weight on the tube; it's about the 'stacking' force. If your motor is fighting the fabric's stiffness, the internal gears will strip or the circuit board will overheat. I went through two more motors before I realized that my fabric choice was the primary antagonist in this story.

The Real Secret to How to Make Blackout Roman Blinds Roll Smoothly

If you want to know how to make blackout roman blinds that actually work, you have to look at the 'drape' of the liner. You need a soft-drape blackout lining that feels like high-quality cotton, not a stiff shower curtain. This reduces the torque required to pull the pleats together as the shade rises.

I also learned to space my lift rings every 7 inches. Any wider and the fabric bunches unevenly, putting a lopsided load on the motor tube. This is where professional Blackout Roman Shades have a massive edge—they use specialized textiles designed to fold without fighting back. I had to rip out my original stitching and restart with a lighter, more flexible lining to save my fourth motor.

How to Make Blackout Roman Shades Stop Leaking Light at the Edges

The biggest fail in most how to make blackout roman shades tutorials is ignoring the 'light gap.' Even with the best fabric, light leaks around the edges like a sieve. I fixed this by installing 1-inch aluminum L-brackets inside the window frame to create a makeshift side channel. It stopped the 2 AM streetlight glare from ruining my sleep.

I finally achieved the 'vault' effect I read about in How Black Blackout Roman Shades Turned My Bedroom Into a Vault. By adding these side channels, the shade sits behind a physical barrier, blocking the 'halo' effect that usually plagues DIY installs. It’s the difference between a dark room and a pitch-black sanctuary.

The Motor Mounting Hardware You're Probably Ignoring

Standard plastic brackets are garbage. When you're lifting 10 pounds of fabric and a lithium-ion battery motor, those tiny plastic tabs will flex. Flexing leads to the motor tube sitting at a slight angle, which causes the fabric to telescope to one side. Eventually, this friction will burn out the motor.

I swapped my plastic mounts for powder-coated steel brackets. It's a $15 upgrade that saves the motor from a slow, grinding death. If you hear a clicking sound when your shades move, your brackets are flexing. Fix it before you're buying a replacement motor on Amazon at midnight.

When to Stop Tinkering and Just Buy a Premade System

DIY is fun until you've spent more on replacement motors and ruined fabric than the cost of a high-end custom unit. If you're doing one small window, go for it. But if you have five windows in a master suite, just get the Silva Series Motorized Blackout Roman Shades. They've already done the torque math and the fabric testing so you don't have to smell burning electronics on a Saturday morning.

FAQ

Can I use any fabric for motorized Roman shades?

No. If the fabric is too heavy or stiff, you will fry the motor. Stick to medium-weight fabrics and use a soft-drape blackout liner to keep the torque requirements low.

How do I stop my DIY shades from telescoping?

Ensure your mounting brackets are perfectly level and made of metal. Plastic brackets flex under load, causing the shade to roll unevenly and eventually jam.

What motor torque do I need for a 60-inch window?

For a standard blackout Roman shade of that size, you should look for a motor with at least 1.5Nm to 2.0Nm of torque. The standard 1.1Nm motors found in cheap kits are usually insufficient for blackout materials.
