My Trick for Making Outside Mount Blinds with Curtains Look High-End

I remember staring at my 1940s window frame with a mix of frustration and defeat. It had about half an inch of mounting depth—barely enough for a tension rod, let alone a motorized roller tube with a lithium-ion battery pack. Trying to force an inside mount was a recipe for a 5-pound motor falling on my head at 3 AM. I eventually pivoted to outside mount blinds with curtains, and it was the best design audible I have ever called.

Quick Takeaways

• Outside mounting is the only real solution for shallow windows or protruding crank handles.
• Layering curtains over shades hides the bulky motorized 'cassette' or roller tube.
• This setup eliminates the 'halo effect' of light leaking around the edges of the blind.
• You need extended wall brackets to ensure the curtains don't snag on the motor housing.

Why I Gave Up on Inside Mount Smart Blinds

Old houses are charming until you try to automate them. My windows have uneven trim and those annoying hand-crank levers that stick out two inches. If I had tried to flush-mount a smart shade, it would have hit the crank every time it descended. It is a mechanical nightmare that leads to burned-out motors and frayed fabric.

Standard smart rollers need at least 2.5 to 3 inches of clear depth to look 'built-in.' When you do not have that, the shade hangs out into the room like a sore thumb. Going with an outside mount—bolting the brackets to the wall or the trim itself—is the only way to ensure the motor has room to breathe and the fabric stays straight.

The 'Ugly Cassette' Problem of Surface Mounting

The problem with outside mounts is that they usually look like office furniture. You are staring at a plastic fascia or a raw aluminum tube and a pair of industrial-looking brackets. Even the high-end brands struggle to make a battery wand look 'decor-friendly' when it is screwed to your drywall.

I spent a week looking at a 1.5-inch gap between my shade and the wall, watching the morning sun blast through like a laser beam. It felt cheap. It felt like I had prioritized tech over the actual vibe of my living room. That is when I realized the shades were only half the equation.

How Outside Mount Blinds With Curtains Fixes the Gap

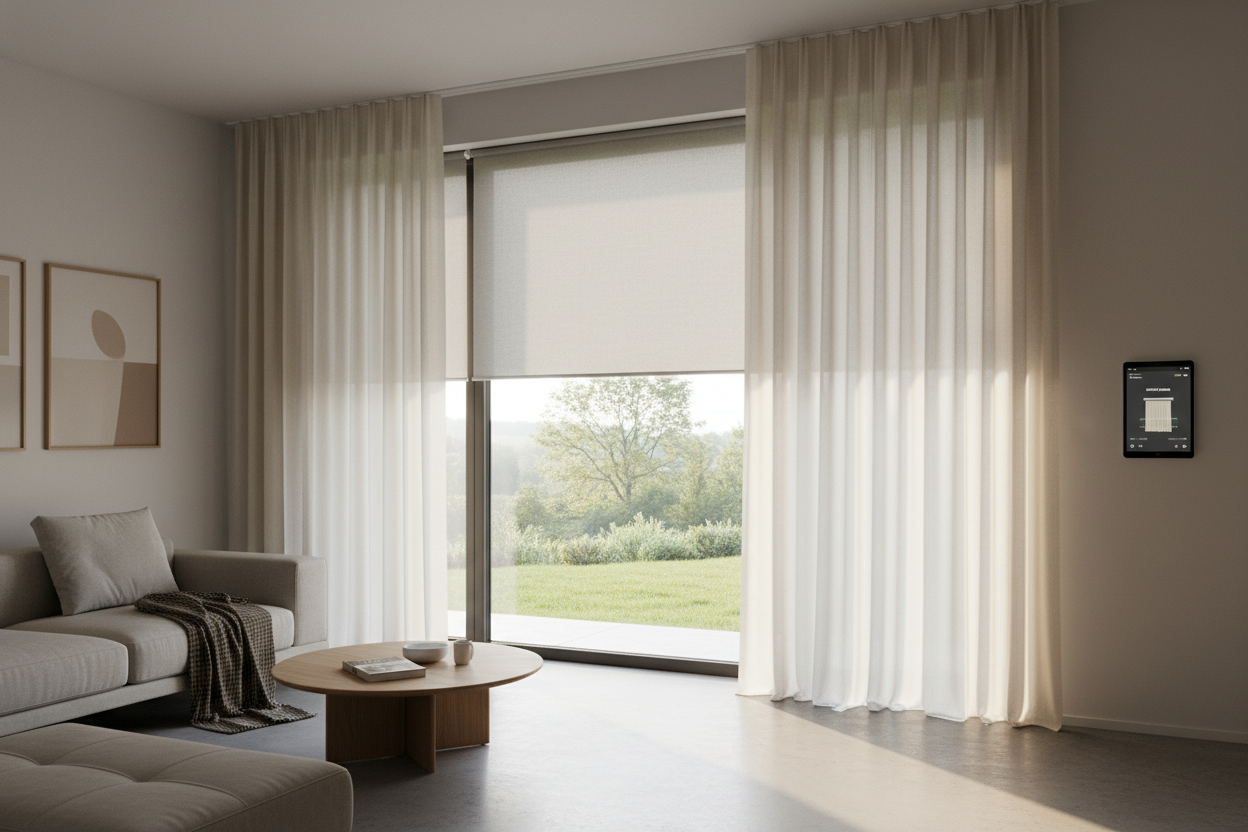

The magic happens when you treat the motorized shade as the utility layer and the curtains as the aesthetic layer. By mounting a curtain rod a few inches higher and wider than the shade, you create a visual frame that hides all the electronics. I paired my rollers with motorized custom blackout drapes to create a wall of fabric that looks like it belongs in a five-star hotel.

This layering fakes the appearance of massive, floor-to-ceiling windows. When the shades are up and the curtains are open, all people see is the fabric. They have no idea there is a Zigbee-enabled motor and a chunky battery pack tucked behind the header. It is the ultimate 'stealth tech' move.

Killing the dreaded light halo for good

If you have ever used outside mount shades with curtains, you know the struggle of the side-light bleed. Because the shade sits on top of the trim, there is always a gap where light spills in. By layering outside mount curtains over the top, the drapes act as a side channel. They hug the wall and block that perimeter light, finally giving me a bedroom that is actually dark at noon.

Clearance Check: Don't Crush Your Motors

Here is where most people mess up: clearance. A motorized roller shade usually sticks out 3 inches from the wall. If you use standard curtain brackets, the drapes will press against the roller. When the motor starts spinning, the friction will cause the fabric to bunch, or worse, trigger the motor's obstacle detection and stop the shade halfway.

You need 'extended' or 'double' brackets. I usually aim for a 5-inch or 6-inch projection for the curtain rod. This gives the shade enough 'air' to spin freely without the drapes rubbing against it. Also, knowing how to install shades securely is vital here. You are hanging a lot of weight on that drywall, so find a stud or use heavy-duty toggle bolts. Do not trust the cheap plastic anchors that come in the box.

Automating Both Layers Without Zigbee Nightmares

I run my setup through a dedicated hub because mixing WiFi and Zigbee in one window can lead to 'popcorn' opening—where one shade opens, then three seconds later the other one starts. It looks messy. I group my shades and curtains into a single room zone. When I say, 'Alexa, movie time,' the shades drop first, followed five seconds later by the drapes.

I have written before about automating woven shades with curtains, and the logic is the same. You want the heavy lifting (light blocking) done by the shade and the finishing touch (privacy and warmth) done by the drapes. My Zigbee motors usually last about six months on a charge, though the manufacturer claimed a year. Pro tip: keep a 10-foot USB-C cable in your drawer so you don't have to take the whole assembly down to charge it.

Is the Layered Smart Look Worth the Extra Cost?

You are essentially buying two sets of window treatments, which is not cheap. However, if you are doing this in a primary bedroom or a media room, it is worth every penny. The combination of total light control and the ability to hide the 'tech' makes the room feel expensive rather than just 'smarted up.'

FAQ

Can I use a single rod for both?

No. You need separate mounting points. The shade needs to be mounted to the wall or trim, and the curtain rod needs to be on its own brackets to provide the necessary clearance for the motor to spin.

Will the curtain fabric interfere with the remote signal?

If you are using RF (Radio Frequency) or Zigbee, no. These signals pass through fabric easily. If you are using an old-school IR (Infrared) motor, you might have issues, but almost no modern smart shades use IR anymore.

How do I hide the charging cables?

I tuck the charging ports toward the top of the roll and use 180-degree USB adapters. Since the curtains are always there, they hide the ports perfectly until I need to plug in a power bank for a top-off.
