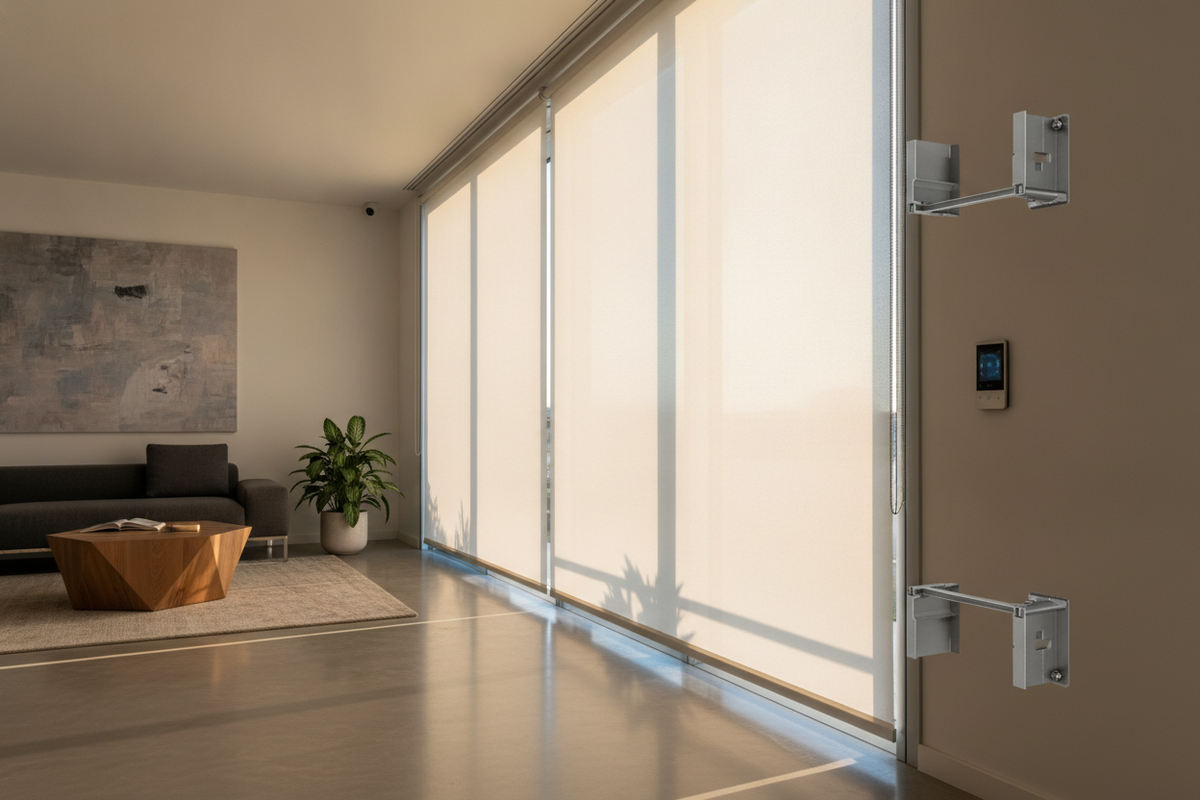

Outside Mount Window Shade Brackets: Mechanics, Sizing Clearances, and Smart Shade Mounting

Introduction: Why Outside Mount Window Shade Brackets Define Installation Success

Selecting and positioning the correct outside mount window shade brackets forms the structural foundation of any surface-mounted window treatment. When a window opening lacks sufficient depth for recessed hardware, outside mounting provides a practical way to install roller shades, cellular blinds, or automated drapery systems. Unlike recessed installations detailed in our mount shade window guide, surface-mounted configurations attach directly to the wall face, architrave, or decorative trim molding.

Properly chosen outside mount brackets do more than merely hold a headrail against a wall. They establish the necessary projection distance to prevent fabrics from scraping against window handles, govern perimeter light bleed by facilitating edge overlap, and sustain the rotational forces generated by motorized drive systems. Understanding how these mechanical components function helps ensure smooth daily operation and a clean architectural finish.

Anatomy and Mechanical Types of Outside Mount Window Shade Brackets

Window shade mounting hardware varies according to the specific headrail profile, operating mechanism, and wall substrate. Identifying the correct bracket design ensures proper mechanical support across the full width of the treatment.

Standard L-Brackets vs. Extension Brackets

Standard outside mount brackets generally employ a rigid L-shaped profile. The vertical flange fastens against the flat wall surface or casing, while the horizontal arm supports the shade cassette, roller idler, or motor end. These standard brackets work well when the wall surface and window trim sit on the same plane without protruding obstructions.

When deep decorative casings, window cranks, or protruding trim elements interfere with the vertical drop of the fabric, adjustable extension brackets become essential. Extension brackets allow installers to adjust the horizontal projection outward from the mounting surface. This additional stand-off distance prevents the shade fabric from rubbing against window frames or sill ledges during travel.

Universal Box Brackets and Intermediate Center Supports

Universal box brackets feature hinged front gates that enclose the square or rectangular end-caps of traditional blind headrails. These brackets allow for top, side, or rear fastening, making them adaptable to unique framing conditions. For continuous cassette profiles or open-roll designs, specialized snap-in brackets engage with top retention grooves.

On wider spans, intermediate center support brackets distribute the physical load across the entire assembly. Center brackets help reduce headrail sagging or deflection, which is helpful for motorized systems where an unsupported housing can cause internal drive binding or uneven fabric roll-up.

Substrate Anchorage and Structural Considerations

The structural integrity of an outside mount bracket depends heavily on the mounting substrate and fastener selection. Because outside mount window shade brackets project outward from the wall, they experience cantilevered gravitational pull alongside operational movement.

Direct Wood Trim Mounting vs. Drywall Anchorage

Fastening brackets into solid wood window casing or structural framing studs provides a stable physical base for surface-mounted treatments. Screws secured directly into solid framing material help create a reliable mount for everyday manual or automated operation.

When securing brackets into hollow drywall or plaster surfaces above a window frame, appropriate hollow-wall anchors such as toggle anchors or expanding wall fasteners help distribute mechanical tension. Using suitable wall anchors rather than relying on standard friction plugs helps maintain stability whenever structural wood studs are not directly accessible.

Managing Dynamic Torque from Motorized Roller and Cellular Shades

Motorized window shades introduce dynamic startup and braking torque to the bracket assemblies. When a motor engages, a rotational counter-force transfers directly into the motor-head bracket. If the bracket flexes or the wall fastener is loose, the motor head can shift, causing misalignment, operating noise, or irregular wear on the drive crown. Rigid, heavy-gauge steel outside mount brackets provide the stiffness needed to absorb these automated cycles smoothly.

Clearance Engineering: Overcoming Obstructions and Light Bleed

Achieving clean aesthetics and reliable shade movement requires calculating horizontal projection and peripheral overlap before drilling mounting holes.

Calculating Projection Depth for Cranks, Mullions, and Knobs

To establish the required bracket projection, measure the distance from the intended mounting surface to the furthest protruding point of the window hardware, such as a casement crank, lock handle, or secondary trim rail. The horizontal reach of the outside mount bracket must exceed this measurement to ensure the fabric falls cleanly without snagging. Folded treatments require careful clearance planning, as explored in our outside mount shade guide.

Sizing Overlap Beyond the Window Opening

A major functional advantage of an outside mount bracket setup is the reduction of lateral light gaps. By positioning the brackets beyond the outer edges of the window opening, the shade fabric covers the clear opening completely. Sizing the width and height with generous overlap enhances both thermal coverage and nighttime privacy. For a finished presentation that hides the bracket hardware, decorative valances provide an elegant solution, as discussed in our shade outside mount guide.

Smart Motorization and Power Integration with Outside Mounts

Smart shade systems require deliberate planning around power access, charging points, and alignment calibration during bracket installation.

Power Cabling, Battery Wand Concealment, and Solar Channels

Outside mount window shade brackets position the shade housing against the wall face, requiring neat cable management for automated systems. For rechargeable battery-powered units, brackets must leave room to access charging ports or conceal an external battery wand behind the headrail. For hardwired smart systems, routing low-voltage wiring through discreet wall pathways directly behind the bracket base plate keeps cables organized. Exterior-rated hardware considerations for alternative outdoor installations are detailed in our window shade outside guide.

Automated Control and Alignment Calibration

Automated routines, voice commands, and scheduled scenes rely on precise physical alignment. If outside mount brackets are mounted slightly out of level, the fabric roll may telescope to one side during movement. Over multiple automated cycles, telescoping can cause fabric edges to track unevenly against the bracket flanges. Using a level across the mounting brackets before securing them helps ensure straight tracking across every smart routine.

Troubleshooting Common Outside Mount Bracket Issues

• Telescoping Fabric: Check that both end brackets sit on a level horizontal plane. Minor shimming behind the lower bracket can restore true horizontal alignment.
• Loose Wall Anchorage: If screws loosen in drywall, replace them with heavy-duty toggle anchors rather than reusing stripped holes.
• Trim Collisions: If the falling bottom bar hits a window latch, swap standard L-brackets for adjustable extension brackets to push the shade forward.
• Headrail Bowing: Add an intermediate center support bracket to reinforce the span and prevent motor binding on wider assemblies.
