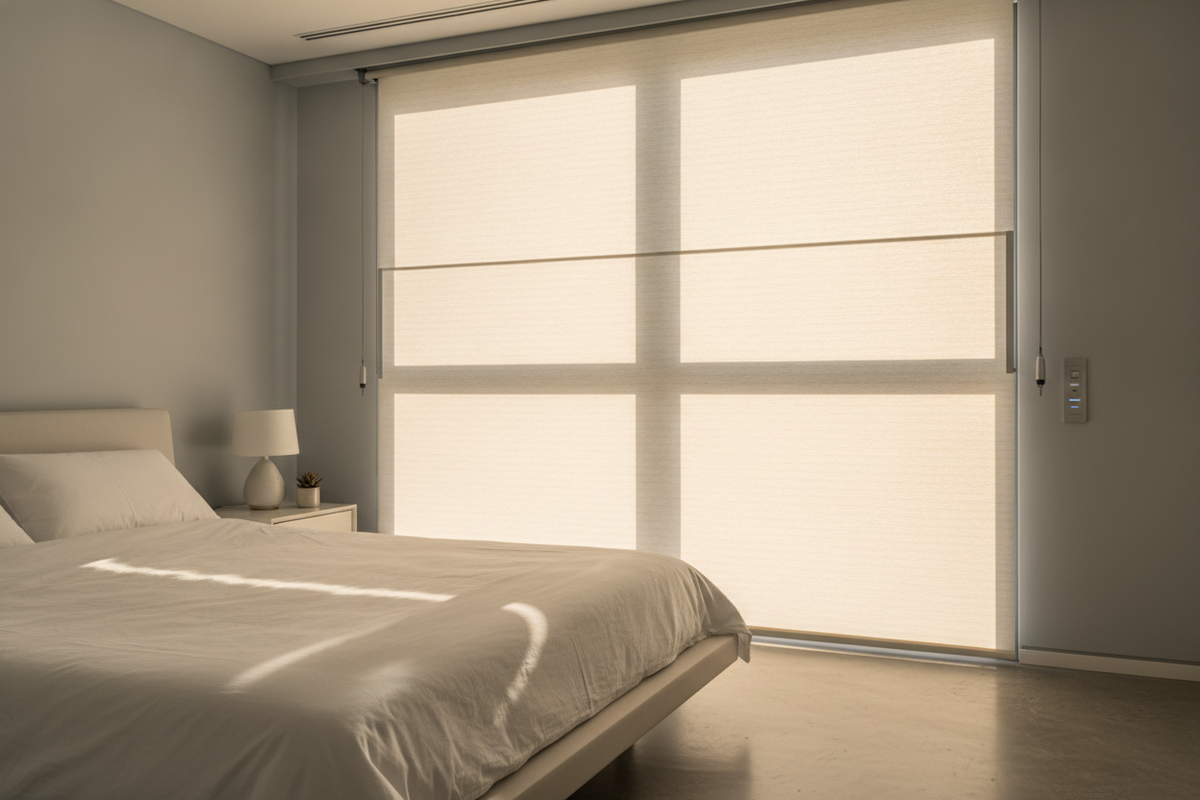

Top-Down Bottom-Up Cellular Shades: Mechanics, Privacy Zoning, and Smart Automation Architecture

Architectural Mechanics of Top-Down Bottom-Up Cellular Shades

Standard window coverings traditionally operate along a single vector: extending downward to block light and retracting upward to reveal the view. While effective for simple light control, this binary movement frequently creates an all-or-nothing compromise between interior illumination and residential privacy. Top-down bottom-up window treatments solve this design dilemma through a three-rail mechanical assembly that allows the shade material to be positioned anywhere along the vertical plane of the window opening.

The engineering behind cellular shades top down bottom up configurations relies on a coordinated assembly comprising a fixed headrail, an intermediate floating middle rail, and a weighted bottom rail. Unlike conventional single-drop window treatments, the fabric cellular structure is attached between the floating middle rail and the bottom rail. When lowering the top of the shade, the middle rail moves downward along internal guide cables, exposing the upper portion of the glass while keeping the lower pane fully covered. Conversely, lifting the lower rail compresses the honeycomb cells upward against the middle rail.

The internal geometry of the honeycomb fabric provides significant thermal resistance by trapping still air pockets within its individual chambers. When reviewing options across a comprehensive cellular shades collection, understanding this structural interaction is essential. In a cellular shade top down arrangement, tension cords pass through precision-punched rout holes within the interior of each cell. This routing conceals the internal mechanical cords within the honeycomb structure, maintaining clean fabric lines while ensuring stable horizontal alignment during movement.

Cordless Manual Lifts vs. Smart Motorized Architecture

Operating a multi-rail cellular shade requires precise tensioning to ensure that both the floating middle rail and the bottom rail remain level across wide spans. Modern installations primarily divide between manual spring-tensioned cordless assemblies and dual-drive motorized architectures.

In a manual top down bottom up cordless cellular shade, internal counterbalanced constant-force spring boxes are housed inside both the headrail and the bottom rail assemblies. When you adjust either rail by hand, friction stops within the cord routing hold the rail in place once force is released. The internal mechanics must balance the gravitational weight of the rails and fabric against the variable spring tension. While cordless manual systems offer clean aesthetic lines without hanging cords, wide spans or tall windows can demand considerable reach and physical effort, particularly when lowering the floating middle rail from high casings.

For elevated ceilings, deep furniture setbacks, or whole-home integration, smart motorized window coverings represent a significant mechanical evolution. A motorized dual-lift top down bottom up cordless honeycomb cellular shade utilizes two synchronized micro-motors. One motor manages the suspension lines for the floating middle rail, while the second motor controls the bottom rail spooling mechanism. This dual-drive configuration eliminates mechanical cord drift through digital encoder positioning.

When specifying an advanced automated cellular shades product, dual-drive motor systems can be linked into smart home controllers. This enables scheduled daylight routines, automated solar tracking, and scene setting without manual intervention, transforming multi-rail positioning into an effortless component of home automation.

Daylight Harvesting and Privacy Zoning Strategies

The primary spatial advantage of dual-directional cellular shading is the ability to implement architectural privacy zoning. Traditional shades force occupants on ground floors or dense urban corridors to choose between keeping their interiors dark or exposing personal spaces to outside foot traffic and neighboring buildings.

By lowering the top rail while leaving the lower portion drawn, cellular shades top down bottom up systems facilitate daylight harvesting. Natural sunlight enters through the exposed upper pane, striking the ceiling and diffusing deep into the room. Simultaneously, the lower portion of the shade blocks direct sightlines from street level into living rooms, home offices, and ground-floor master suites.

Designing an effective privacy zoning layout requires evaluating room orientation and seasonal sun angles:

• Street-Level Living Spaces: Lower the middle rail just enough to admit ambient daylight over eye level while fully covering the lower half of the window to maintain complete exterior shielding.
• Bedrooms and Bathrooms: Position the middle rail to clear upper clerestory or window zones for morning light while keeping personal sightlines obstructed from neighboring properties. For further design considerations, consult our comprehensive cellular shade down guide.
• Home Workspaces: Drop the upper rail to bounce indirect light across working surfaces while preventing harsh reflections or direct glare on computer monitors.

Window Compatibility, Depth Allowances, and Stacking Physics

Before installing dual-directional cellular treatments, careful evaluation of window frame depth, casing construction, and fabric stack dimensions is necessary. Because a top-down bottom-up system incorporates three distinct rails—headrail, middle rail, and bottom rail—the fully stacked profile is inherently thicker than that of a standard single-rail shade.

When planning an inside mount, ensure your window frame provides sufficient depth to house the headrail bracket assembly cleanly within the casing. Shallow casings may cause the multi-rail system to project past the trim line, allowing peripheral light gaps or interfering with nearby window hardware, cranks, and handles.

Consider these structural factors during project planning:

• Fabric Cell Profile: Single-cell and double-cell honeycomb fabrics compress differently. Single-cell configurations yield a more compact stack, making them advantageous for windows with limited vertical glass height.
• Outside Mounting Allowances: When inside frame depth is insufficient, outside mounting across the window trim provides full coverage, though side light gaps should be factored into thermal and room-darkening objectives.
• Width-to-Height Proportions: Exceptionally wide windows may experience subtle center rail deflection if unsupported, making split configurations on adjacent side-by-side headrails preferable for large architectural glass walls.

Troubleshooting Tension Drift and Maintenance Frameworks

Because top-down bottom-up systems rely on dual sets of suspension cables, uneven rail alignment or mechanical drift can occasionally occur over time. Regular preventive maintenance and proper operational habits keep both manual and motorized assemblies operating smoothly.

In manual cordless models, uneven pulling on the floating middle rail can cause tension cables to shift within the friction clutches, resulting in a tilted rail. If the shade becomes skewed or fails to hold its position, reset the internal spring tension through full-stroke cycles: gently lower both rails to the windowsill and then raise them evenly back up into the headrail to equalize internal spooling. For step-by-step diagnostic workflows, refer to our detailed shades cordless down guide.

For motorized installations, rail drift is generally corrected through digital calibration rather than physical manipulation:

1. Limit Recalibration: Use the pairing remote or companion app to reset upper and lower limit stops, allowing the internal motor encoders to redefine the exact travel bounds for both middle and bottom rails.
2. Obstruction Inspection: Check that internal guide cords remain unobstructed by dust accumulation or foreign debris inside the side tracks or cellular cavities.
3. Cellular Fabric Care: Keep honeycomb cells free of ambient dust using a soft brush attachment on a low-suction vacuum, working horizontally along each cell chamber to protect fabric pleat crispness.

By integrating thoughtful mechanical selection, proper spatial zoning, and proactive maintenance, top-down bottom-up cellular shades deliver an ideal synthesis of modern thermal performance, versatile privacy control, and architectural sophistication.
